Ground Water and Process Water Monitoring

Efficient water management is critical for mining operations, where limited visibility into water flows can increase operating costs, elevate environmental and safety risks, and disrupt production. Reliable flow data is the foundation for effective control of both ground water and process water systems.


Non‑Intrusive Flow Measurement Without Disrupting Operations

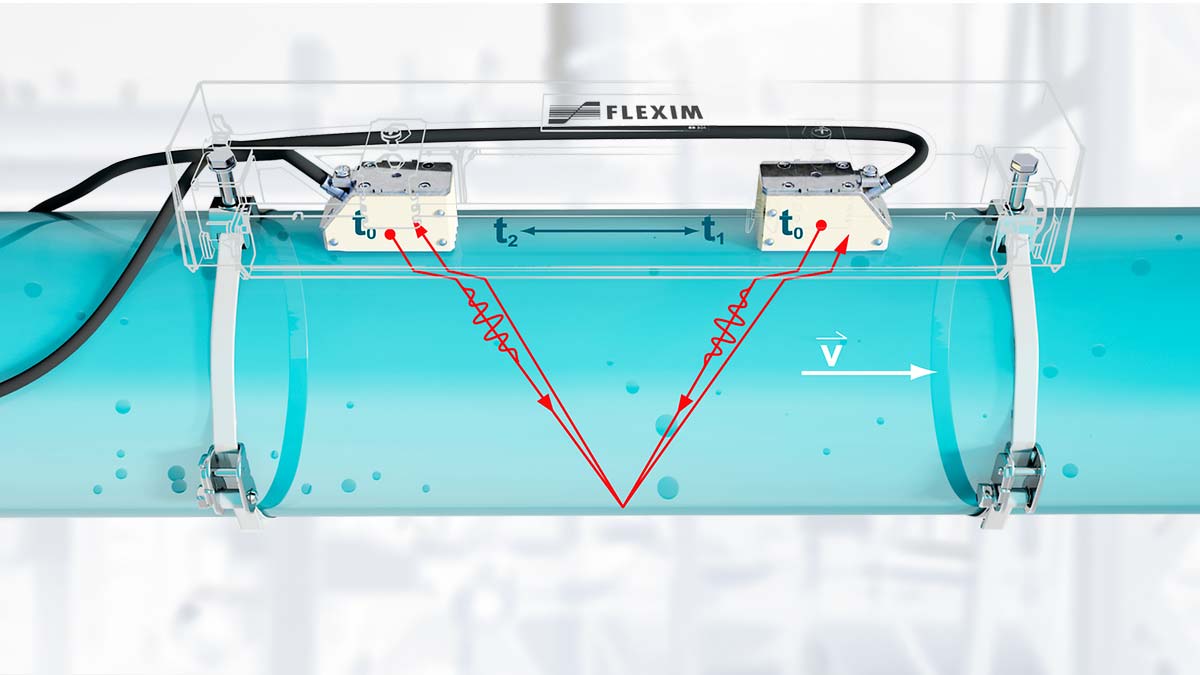

FLEXIM’s non‑intrusive ultrasonic flow meters provide accurate, reliable measurement without interrupting mining operations. The clamp‑on design installs directly onto existing piping with no cutting, no process shutdowns, and no heavy infrastructure or crane requirements. This makes FLEXIM solutions ideally suited for retrofits, remote sites, and locations with difficult access or strict safety constraints.


Reliable Performance with Minimal Maintenance

Because the sensors never contact the process, there are no wetted parts, no abrasion, and no risk of clogging. Maintenance requirements are minimal, long‑term accuracy remains high, and total cost of ownership is significantly reduced compared to intrusive flow technologies.

This non‑contact approach allows mining operations to maintain continuous flow monitoring while avoiding the risks and costs associated with inline installations.


Designed for Demanding Mining Environments

FLEXIM solutions are well suited for monitoring ground water extraction, dewatering systems, and critical process water circuits across mining operations. The robust clamp‑on design supports continuous operation in harsh environments while preserving pipe integrity and system reliability.

Purpose‑built solutions such as the FLUXUS® F532WD and FLUXUS® F731WD are specifically designed for water distribution applications, providing dependable flow measurement for mining water management systems.


Improve Water Stewardship and Operational Control

For mining operations focused on improving water stewardship, controlling operating costs, and maintaining safe, uninterrupted production, FLEXIM delivers a fast, safe, and economical solution for ground water and process water measurement.

LEARN MORE  Flexim FLUXUS F532WD Stationary Ultrasonic Water Flow Meter

LEARN MORE  Flexim FLUXUS F731 WD - Stationary Ultrasonic Water Flow Meter

Accurate, reliable flow and temperature data is essential for water and wastewater utilities facing aging infrastructure, water loss, and increasing performance expectations. FLEXIM delivers permanent, non-intrusive measurement solutions designed specifically for long-term utility operation.


Drift-Free Measurement for Distribution and Collection Networks

FLEXIM’s FLUXUS® WD non-intrusive ultrasonic meters provide long-term accuracy without drift. Installed on the outside of the pipe, they eliminate cutting, shutdowns, and recalibration while delivering consistent performance over the full life of the system. Factory-matched piezo transducers and advanced calibration ensure measurement stability utility operators can rely on.


Detect Leaks with Ultra-Low-Flow Sensitivity

With sensitivity down to 0.03 ft/s (0.01 m/s), FLUXUS® WD excels at minimum night flow monitoring, a critical technique for identifying leakage in water distribution networks. This precision allows utilities to detect losses earlier, reduce non-revenue water, and prioritize maintenance resources more effectively.


Integrated Temperature Measurement for Water Quality Insight

Non-intrusive temperature measurement provides additional visibility into network conditions. Elevated water temperatures, particularly in low-flow or stagnant areas, can increase the risk of bacterial growth. FLUXUS® WD enables simultaneous monitoring of flow, velocity, and temperature using a single clamp-on device, supporting both hydraulic efficiency and water quality management without introducing sensors into the process.


Built for Buried and Long-Term Installations

Designed for harsh utility environments, FLUXUS® WD features IP68-rated transducers, permanent maintenance-free coupling pads, and robust stainless-steel mounting hardware. Transducers can be installed in chambers or directly buried, eliminating the need for vault construction.

Compatible with virtually all pipe materials, including challenging applications such as FRP, and available for pipe sizes ranging from small distribution lines to large transmission mains, FLUXUS® WD integrates seamlessly into existing water and wastewater networks.


A Reliable, Future-Ready Utility Solution

By minimizing installation costs, eliminating maintenance, and delivering unmatched low-flow accuracy, FLEXIM provides water and wastewater operators with a dependable, long-term solution for flow and temperature monitoring wherever accuracy matters most.

Accurate sulfuric acid flow and concentration measurement is critical in mining operations, where errors can directly impact leaching efficiency, metal recovery, reagent consumption, and overall process safety. Reliable, real‑time data is essential across sulfuric acid applications, from acid plant control to transport, distribution, and raffinate recycling.


Non‑Intrusive Measurement Without Process Risk

FLEXIM’s PIOX® S non‑intrusive ultrasonic technology delivers reliable sulfuric acid measurement without ever contacting the process. Mounted externally on the pipe, it measures sulfuric acid concentration and mass flow directly on live production lines with no pipe cutting, no welding, no flanges, and no exposure to hazardous media.


Improved Safety and Reduced Downtime

The fully clamp‑on design enhances both plant and operator safety by eliminating potential leak paths and avoiding downtime associated with intrusive installations. Without wetted parts, the measurement remains free of abrasion, corrosion, and buildup, even in aggressive acid service.


Reliable Performance Across Extreme Conditions

PIOX® S delivers stable, long‑term performance across a wide range of operating conditions, including elevated temperatures up to 1166 °F. This makes it well suited for demanding mining applications where traditional inline instruments struggle with material compatibility and maintenance requirements.


Accurate Measurement Across the Full Concentration Range

From dilute sulfuric acid solutions to oleum, FLEXIM provides a safe, accurate, and dependable solution for critical sulfuric acid flow, concentration, and density measurement in modern mining operations.

Compressed air is one of the most expensive utilities in mining, yet up to 30 percent of its useful energy can be lost due to leaks, inefficiencies, and limited system visibility. Accurate flow measurement is essential for balancing air networks, identifying losses, and improving overall energy efficiency.


Non‑Intrusive Measurement Without Pressure Loss or Downtime

FLEXIM’s FLUXUS® CA non‑intrusive ultrasonic flow meters provide a fast, safe, and highly accurate way to monitor compressed air without cutting pipes, shutting down processes, or introducing new leak risks. Installed on the outside of the line, they eliminate pressure drop, contamination concerns, and mechanical wear commonly associated with inline meters.


High Sensitivity for Leak Detection and System Optimization

FLUXUS® CA offers exceptional low‑flow sensitivity, capable of detecting flows as low as 0.03 ft/s. Compatibility with operating pressures down to 45 psi, and even atmospheric pressure on plastic pipe, allows reliable measurement across a wide range of compressed air systems.

This performance makes FLUXUS® CA well suited for identifying leaks, validating system balancing efforts, and improving compressed air efficiency across mining operations.


Maintenance‑Free Operation in Harsh Environments

The fully clamp‑on design features no moving parts, no mechanical wear, and no transducer greasing. With no contact with the process, FLUXUS® CA operates maintenance‑free while preserving long‑term measurement stability and system integrity.


Flexible Solutions for Audits and Continuous Monitoring

Available in both portable and permanent configurations, FLUXUS® CA supports energy audits, leak detection programs, consumption metering, line balancing, and compressor efficiency monitoring. All measurements are performed while keeping the pipe system fully intact and free from installation‑related downtime.


Reduce Energy Costs and Improve Operational Efficiency

For mining operations focused on reducing energy costs, eliminating compressed air losses, and improving system performance, FLEXIM provides a safe, accurate, and versatile solution for compressed air measurement.

Efficient thermal energy management is critical for modern buildings and industrial facilities. Rising energy costs, tightening environmental regulations, and growing sustainability goals make accurate flow and energy measurement essential across utility systems. Reliable real‑time data is the foundation for effective control, optimization, and verification.


Non‑Intrusive Thermal Energy Measurement Without Disruption

FLEXIM’s clamp‑on thermal energy ultrasonic meters deliver accurate flow and temperature differential measurement without interrupting operations. Installed directly on the outside of the pipe, they eliminate pipe cutting, welding, shutdowns, and pressure drop, making them ideal for both new installations and retrofit projects.

These non‑intrusive meters support a wide range of applications, including chiller and heating plants, district energy networks, HVAC systems, submetering, leak detection, and combined heat and power plants.


High Accuracy for Energy Control and Billing Confidence

With up to 1 percent flow accuracy and 0.03 °F temperature differential resolution, FLUXUS® meters excel in demanding energy measurement tasks. Common applications include verifying built‑in BTU meters, monitoring chilled and hot water supply, measuring domestic and condenser water, and tracking steam condensate return.

Their ability to measure extremely low flow rates, often encountered during off‑peak operation, helps prevent lost revenue, ensures accurate energy allocation, and supports robust measurement and verification programs.


Maintenance‑Free Performance with Long‑Term Stability

Because sensors never contact the process, FLEXIM meters are completely maintenance‑free. The patented permanent coupling pad eliminates grease associated with traditional clamp‑on technologies, while embedded RTDs and advanced signal processing maintain long‑term zero stability without drift or recalibration.

Thousands of installations worldwide continue operating reliably for years without service.


Support for a Full Range of Energy Initiatives

FLEXIM solutions support a wide spectrum of thermal energy and utility monitoring programs, including:

• Energy audits and optimization
• Billing and cost allocation
• Verification of existing metering
• Demand response and load management
• Retrofits and system balancing
• Compliance with standards such as EN 1434
• Sustainability initiatives including LEED, Energy Star, AASHE STARS, and Local Law 87

A Modern Platform for Energy Efficiency and Sustainability

For organizations focused on improving energy efficiency, reducing operating costs, and meeting sustainability objectives, FLEXIM’s FLUXUS® Energy platform provides a powerful, accurate, and non‑intrusive solution for thermal energy and utilities monitoring.
