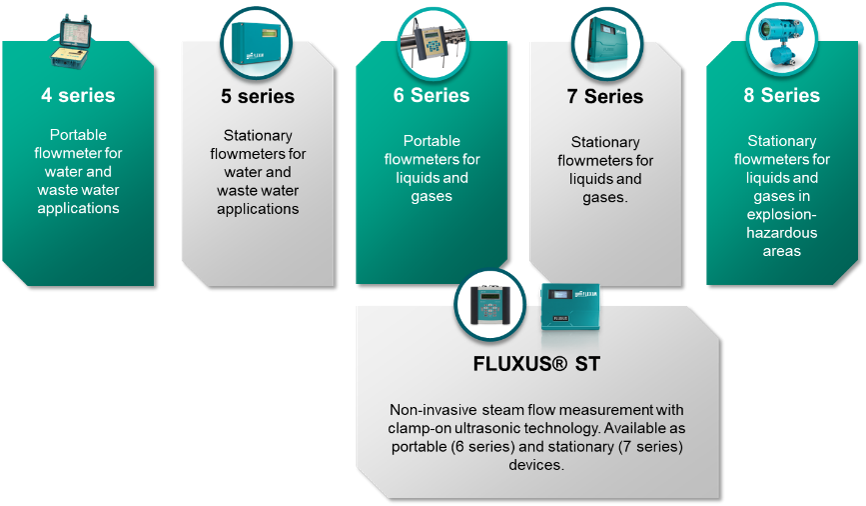

FLOWMETERS
Permanent & Clamp-On
FLUXUS® clamp-on ultrasonic systems determine the volume flow according to the transit-time difference method. Since the ultrasonic signal that is irradiated into the pipe is carried by the medium flowing inside, a time delay occurs between the acoustic transit time both with and against the flow of direction. This time delay can be measured very accurately. The measuring transmitter calculates the volume flowrate based on the parameters input for the pipe geometry and the physical properties of the medium stored in the internal database.
The reliability and accuracy of measuring systems depend on the quality of their manufacturing and calibration. Consistent quality management according to DIN ISO 9001 is essential for Flexim, which has a calibration laboratory certified to ISO/IEC 17025:2018. Calibration is carried out on individual calibration equipment according to national standards. Flexim calibrates pairs of transducers and measuring transmitters independently of one another so that the narrowly defined measurement uncertainties are always observed, regardless of which transducers are used.
The Flexim FLUXUS® Non-Intrusive Ultrasonic Flow Meters are used wherever something flows. Clamp-on technology opens up an unrivaled wide range of applications as the FLUXUS device reliably measures the flow of virtually any medium, be it liquid or gas, regardless of the flow direction (bidirectional) and over an extremely wide measuring range. Due to its practical advantages, external flow measurement with clamp-on ultrasonic transducers has become a standard measuring technique in a broad range of industries and applications.
Advanced Meter Verification (AMV) allows you to check the health of your Flexim flow measurement device directly onsite without the need of process interruption. This flow meter verification solution saves cost while ensuring the performance of your non-invasive flow measurement. The continuous acquisition and permanent storage of diagnostic values by the transmitter enables regular verification. Based on this data, maintenance can be planned, and unexpected failures can be avoided. Operators can automatically generate a flow meter verification report provides the documentation required for your quality management system.

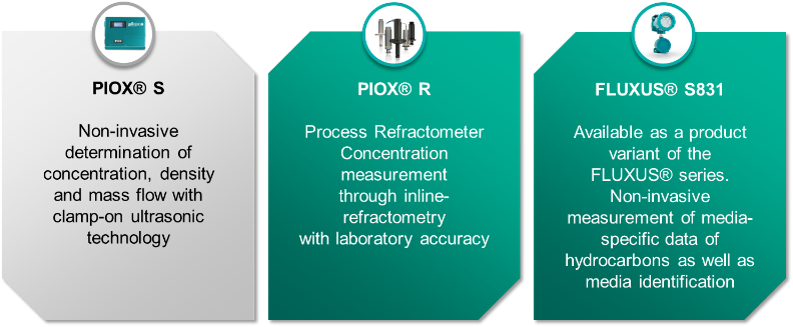

PROCESS ANALYZERS

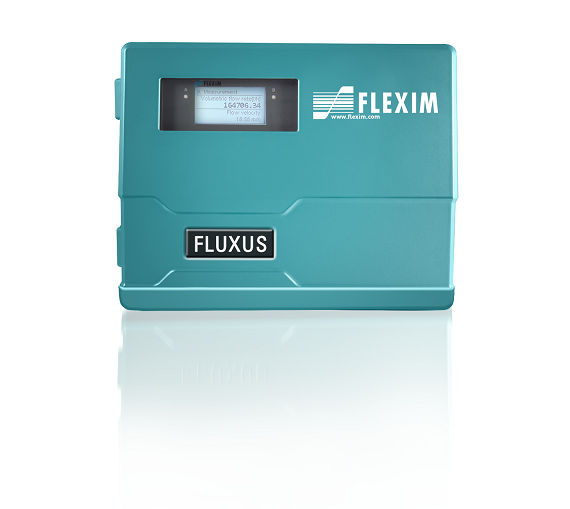

Gas Flowmeter
Fluxus G721
The FLUXUS G721 clamp-on gas flow meter offers non-intrusive flow measurement:
- virtually any kind of gas (from natural gas to process gases).
- over a wide pipe diameter range (from 0.25 to 80 inches), independent of wall thickness, material and internal pressurization.
- no maximum pressure limitation and starting from as low as 45 psi at steel lines and below atmospheric pressure at plastic pipes).
- Even hot gas up to +390°F isn't a challenge for the FLUXUS G721 gas flow meter.
Gas Flowmeter

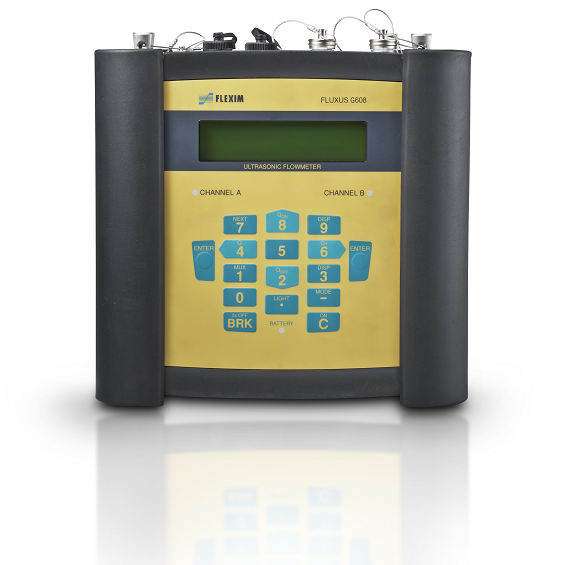

Fluxus G608
The new FLUXUS G608 portable gas flow meter is based on the widely used, highly reliable and versatile G601:
- specifically engineered for its use within hazardous areas and is FM Class I, Div. 2 approved.
- An extremely resistant carbon fiber housing, together with its rugged transducer design, resistance against oil, water and many other liquids.
- The G608 portable gas flow meter has the same efficient battery management system as the G601, offering over 14 hrs. of remote measurement time.
- Its application range is unrivalled - from pipes as small as 0.25 to 63 inches inner diameter and temperatures ranging from 14°F to 392°F.

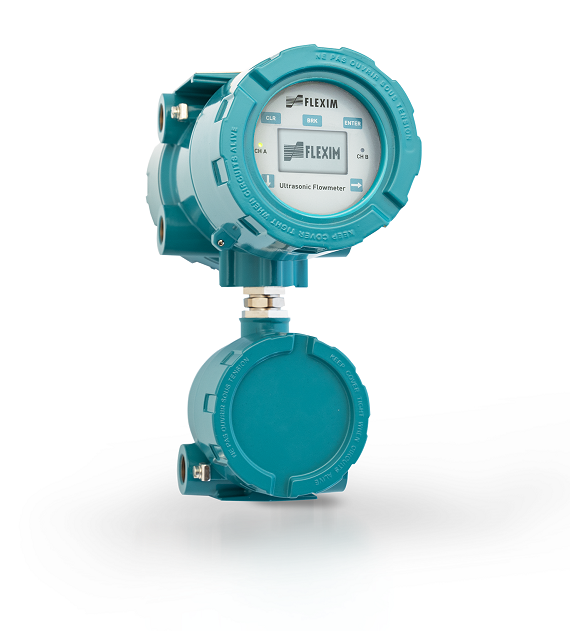

Gas Flowmeter
Fluxus G831
The FLUXUS G831 gas flow meter is a high performing ultrasonic clamp on meter:
- specifically designed for measurement of dynamic flows in hazardous areas (ATEX, IECEx Zone 1 and FM Class I, Div. 1 approved).
- perfectly suited for demanding industrial and process applications in and out of the oil field and the chemical industry.
- explosion proof housing, compact design, and the corrosion resistant ATEX, IECEx Zone 1 – FM Class 1. Div. 1 rated transducers mounted in “fit for purpose” rugged mounting fixtures, the system’s mechanical stability and permanent contact with the pipe surface is assured.
Gas Flowmeter
Fluxus G722
The FLUXUS G722 gas flow meter is a high performing ultrasonic clamp on meter:
- specifically designed for measurement of dynamic flows in the process industry.
- faster processing capabilities, advanced diagnostics, bidirectional communication protocols, digital outputs and process inputs.
- the G722 offers ease of installation, retrofittable design, accuracy, and outstanding performance.
- Using the new Synchronized Channel Averaging method (SCA), the G722 ultrasonic flow meter sends signals both in the direction of the flow and against the flow every 1millisecond.
Gas Flowmeter

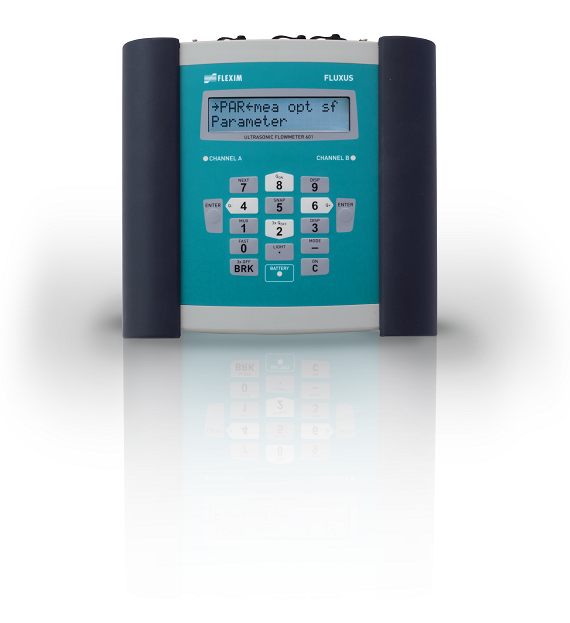

Fluxus G601
The FLUXUS G601 portable clamp-on ultrasonic gas flow meter:
- measures the flow of virtually any gas using FLEXIM’s proven transit-time correlation technique.
- allows for an inherently bi-directional gas flow measurement of operational and standard volume flows.
- featuring an ergonomic design, which offers simple handling and maximum ease of use, the G601 was designed to easily withstand rough industrial environments.

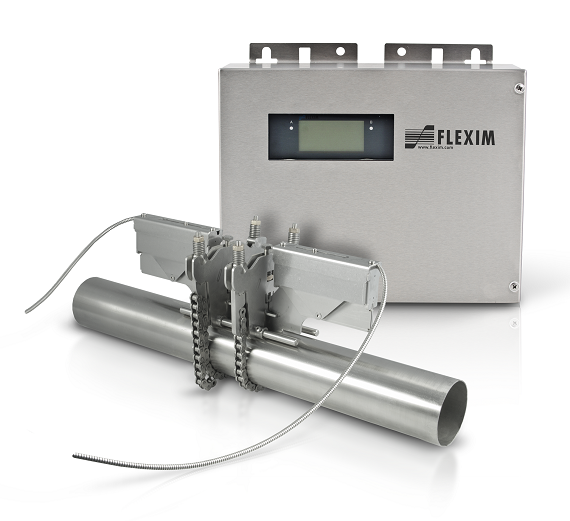

Gas Flowmeter
WaveInjector
FLEXIM's non-invasive flow measurement technology, in combination with the patented WaveInjector, provides you with the competitive edge – in process control, process management, and environmental protection.
- non-invasive Flow Metering at extreme temperatures from -328°F up to 1166°F.
Liquid Flowmeter
Fluxus F721
The FLUXUS F721 is a technological breakthrough in the ultrasonic clamp-on volume and mass flow measurement of liquids.
- highly sophisticated signal filters, faster than ever processing capacities and advanced measurement algorithms.
- the meter adapts itself automatically to the respective measurement conditions and compensates for flow profile disturbances such as beam dispersal and structure-borne noise, allowing for even more precise and reliable measurements.
- extreme fast measurement cycles enable precise real time monitoring of highly dynamic processes.
Liquid Flowmeter

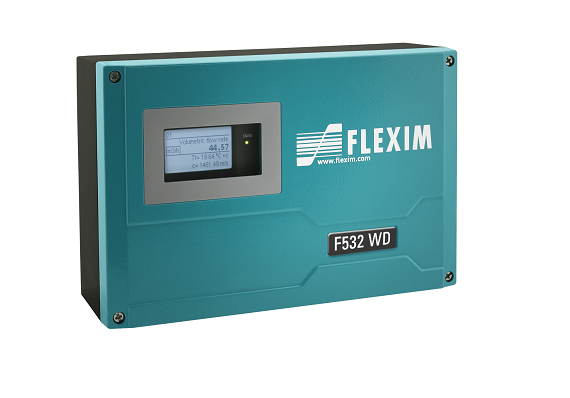

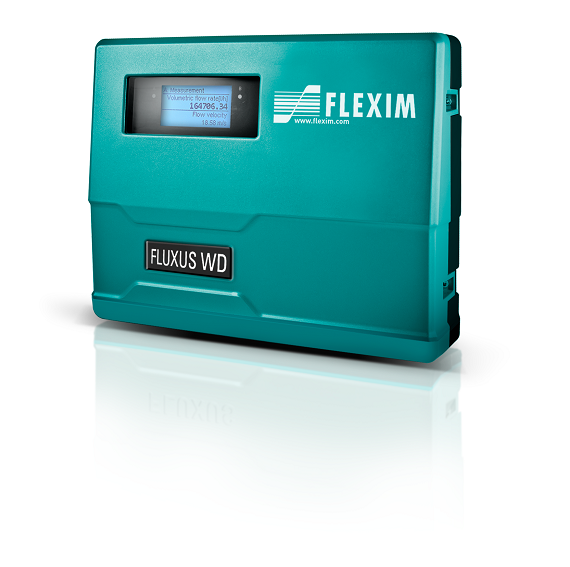

Fluxus WD
The FLUXUS WD Series non-invasive ultrasonic flow meter:
- is the ideal solution for metering points in the drinking water network.
- enables a very simple and cost-effective installation of flow measurement points within an existing water supply network.
- it even measures flow rates as low as 0.03 ft per sec.
- the strong signal output and noise suppression technology make it possible to use the WD Series on all pipe materials, even on such challenging ones as fiber-reinforced plastic (FRP) pipes.
Liquid Flowmeter
Fluxus F831
The FLUXUS F831 is FLEXIM's dual channel ultrasonic clamp-on flow meter for bi-directional flow measurement of liquids in hazardous areas (ATEX, IECEx Zone 1 and FM Class I, Div. 1 approved).
- explosion proof housing, intrinsically safe inputs and the corrosion resistant transducers residing outside the pipe wall, but inside the rugged VARIOFIX C mounting fixture, ensuring a permanent contact pressure and high mechanical stability.
- suited for every demanding industrial application in and out of the oil field and the chemical industry.
- comes with carefully matched and temperature compensated transducers (fully ANSI / ASME MFC 5M compliant) providing unmatched zero-point stability and precise bi-directional flow measurement over a wide range of conditions.
Liquid Flowmeter
WaveInjector
FLEXIM's non-invasive flow measurement technology, in combination with the patented WaveInjector, provides you with the competitive edge – in process control, process management, and environmental protection.
- non-invasive Flow Metering at extreme temperatures from -328°F up to 1166°F.
Liquid Flowmeter

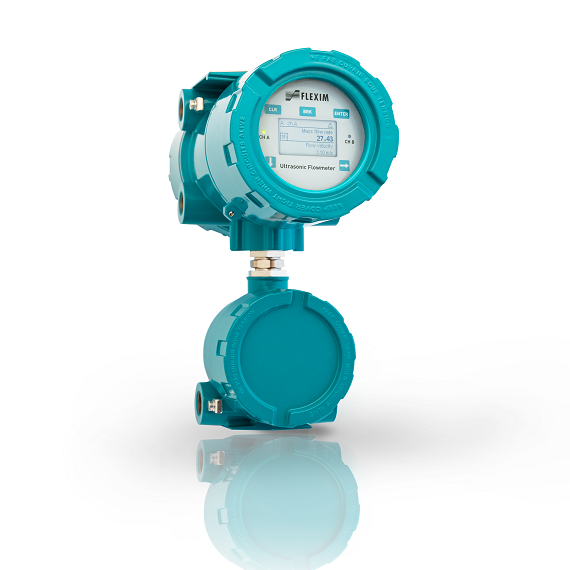

Fluxus H831
The FLUXUS H831 flow meter is equipped with a hydrocarbon-specific database for a wide range of applications and process conditions ranging from light hydrocarbons to crude oils/refined products to heavy hydrocarbons at refineries, tank farms, oil terminals and transport liquid pipelines.
- only Clamp-on Ultrasonic flow meter certified for installation in Zone 1 ( FM Class 1, Div. 1 to come) hazardous areas.
- ability to report standard volume flows and API determination in the Hydrocarbon Processing Industry.
- built-in HPI computer calculates API gravity, operational density, density at base conditions and kinematic viscosity.
FLEXIM is considered the most advanced, reliable and accurate ultrasonic flow meters in the world.
Discover the Difference –Risk Free! This allows you to test the meter in your application to prove performance before you invest in the technology. The rental unit can also be used as a check meter to validate any other measurement points in your process.

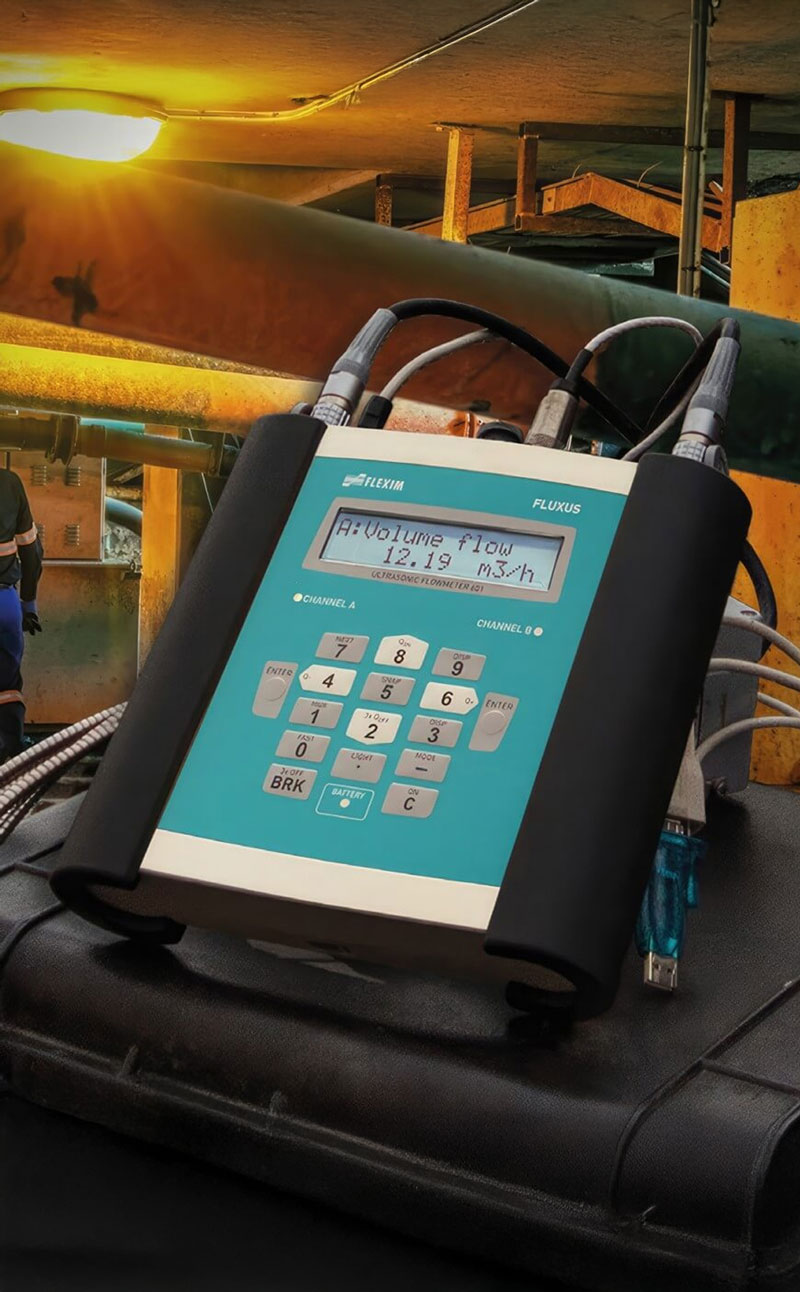

FLEXIM RENTAL FORM
Discover the Difference –Risk Free! This allows you to test the meter in your application to prove performance before you invest in the technology. The rental unit can also be used as a check meter to validate any other measurement points in your process.
Rental Package
The rental package comes with everything you need!
- 600 series portable flowmeter
- Transducer set and mounting hardware sized for your application [additional transducers available for an additional fee]
- Coupling gel
- Power cable / charger
- Quick start guide
Both General Purpose and Hazardous Location options available
Installation and Service
An experienced Field Service Engineer can be sent to your facility to install and configure rented equipment. Upon the end of the rental period, our technician will return to decommission the equipment and provide a data log report.
