A general purpose, versatile stainless steel 304 thermometer.
Bi-metallic sensing element for reliable readings. Adjustable angle connection. Anti-parallax dial that reduces operator reading errors. Applications include industrial process, heating and air conditioning, ventilation and wastewater.

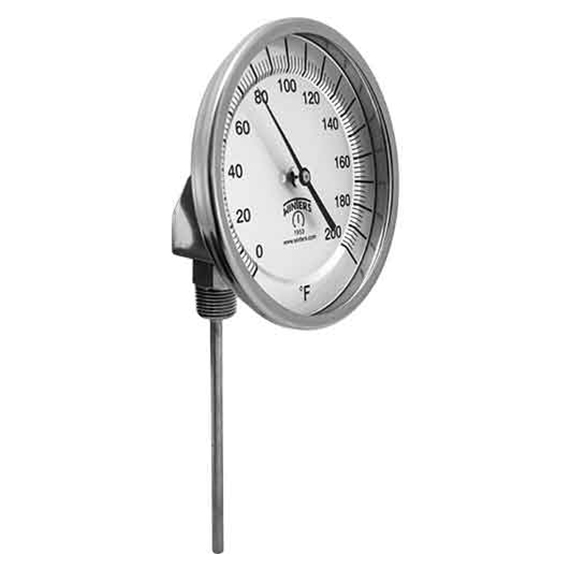

Winters TBM Bi-Metal Thermometer

Specs

Case
AISI 304 SS
Stem
AISI 304 SS, centre back, bottom or adjustable angle configurations (316 SS optional*) 1″ (25mm), 2” (50mm) dial: Centre back connection only
Lens
1” (25mm): Polycarbonate
Movement
Bi-metallic coil
Pointer
Aluminum, painted black
Maximum Operating Pressure
125 psi (861 kPa)

Features

  • A general purpose, versatile 1” (25mm) to 6” (150mm) dial, 304 stainless steel thermometer
  • Bi-metallic sensing element for reliable readings
  • Back, bottom or adjustable angle connection
  • Welded stem length from 2.5” (63mm) and up
  • ±1% accuracy
  • Anti-parallax dial that reduces operator reading errors (3” (75mm)–6” (150mm))
  • Recalibrator screw is standard on all dial sizes
  • ASME B40.200 compliant
  • RoHS compliant
