The StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling.

This model is designed for sour gas applications requiring NACE Standards MR0175-2002 (NACE Standards MR0103-2003 available). The equipment features a stainless steel case, dial sizes 4 inches (100 mm), blow out back plug standard and under and overload stops. Wetted parts meet hardness requirements. The PN2-ZR model conforms to ASME B40.100 is CRN registered and comes with a 5-year warranty.

Technical Sheets

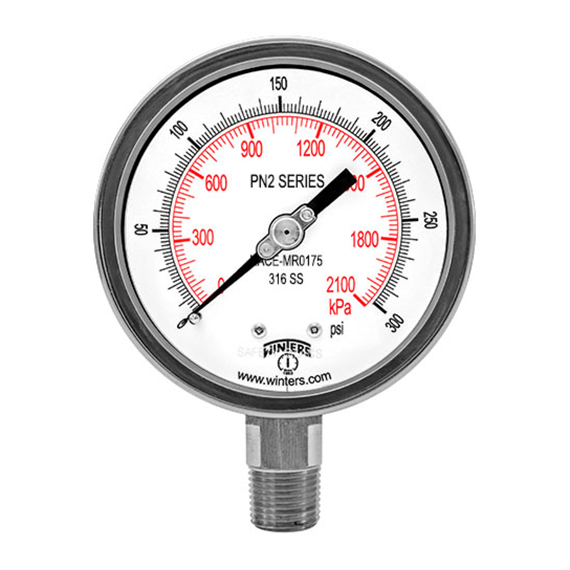

Winters PN2 NACE LIQUID FILLED PRESSURE GAUGE-MR0175-2002

Specs

Dial
4” (100mm) and 6″ (150mm) aluminum with black and red markings
Case
Laminated safety glass
Ring
304 SS, bayonet
Socket
316L SS
Connection
1/4” or 1/2” NPT, bottom or back
Movement
304 SS with under and overload stops
Fill Liquid
Glycerin and H2O filled case

Features

  • Designed for sour gas applications requiring NACE Standards MR0175-2002 (NACE Standards MR0103-2003 available)
  • Glycerin and H2O filled case
  • Blow out back plug standard
  • Under and overload stops
  • Wetted parts meet hardness requirements
  • ASME B40.100 compliant (EN837-1 compliant)
  • RoHS compliant
  • CRN registered
