The Winters PFQ series pressure gauge with brass wetted parts has a glycerin-filled circular dial enclosed in a stainless steel 304 case, and a male connection, and measures pressure with a single or dual scale.
The OT58 brass wetted parts are for measuring non-corrosive liquid and gas pressure. The stainless steel 304 case is also corrosion resistant and is Ingress Protection certified IP65 for protection against solid objects, including dust or liquids. The circular dial comes in 1.5" (40 mm), 2" (50 mm), 2.5" (63 mm), or 4" (100 mm) diameters and is filled with glycerin for protection against vibration and pulsation.

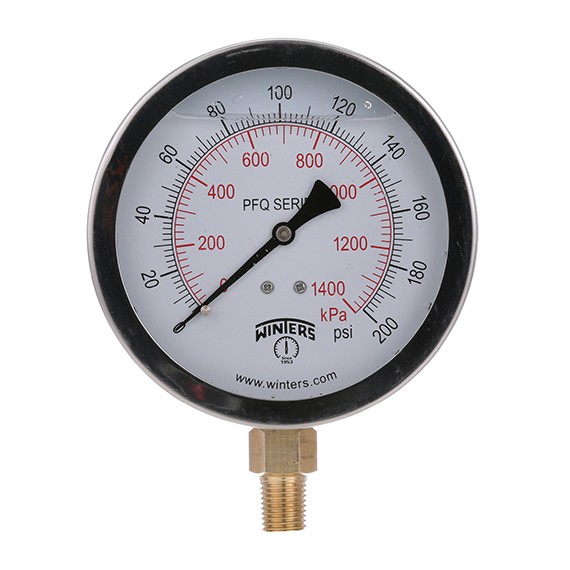

Winters PFQ Stainless Steel Liquid Filled Pressure Gauge

Specs

Dial
1.5″ (40mm), 2″ (50mm), 2.5″ (63mm), 4″ (100mm), white aluminum with black and red markings
Case
AISI 304 SS
Lens
Polycarbonate
Ring
AISI 304 SS, Crimp-On
Connection
1/8”, 1/4” or 1/2” NPT standard with restricted orifice
Key 6
Value 6

Features

  • Pulsation resistant, liquid filled stainless steel case
  • Glycerin filled standard
  • Brass, lead free brass or stainless steel internals
  • Restricted orifice standard on dual scale
  • Ventable plug on 2.5″ (63mm) and 4″ (100mm) bottom mount (excluding SAE connection)
  • Crimp-On bezel
  • Single (psi) or dual scale (psi/kPa)/(psi/bar) available
  • Optional U-Clamps and front flanges
  • Dry case available
  • ASME B40.100 compliant
  • RoHS compliant (SS internals only)
  • CRN registered
  • Lead free version NSF-61-372 certified
