The Flexim FLUXUS F631 BA is ready for measurement in just five minutes and is the portable clamp-on flow meter of choice for servicing and maintenance activities, as well as for controlling and auditing measurement points not covered by permanent meters, or for the temporary replacement of permanently installed flow meters.
With its Li-ion battery, the F631 enables up to 24 hours of autonomous operation.
Matched and paired transducers, together with sophisticated algorithms that detect pipe wall echoes and incorrect transducer positioning, ensure reliable and highly accurate measurements - even under demanding application conditions.
With the FLUXUS 631 family, Emerson also offers portable flow and energy meters for gases, liquids, and steam.

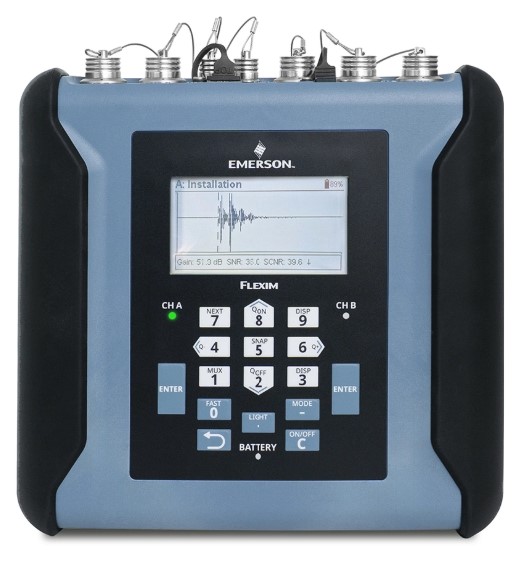

Flexim™ FLUXUS F631 BA - Portable Liquid Clamp-on Ultrasonic Flow Meter
Flexim™ FLUXUS F631 BA - Portable Liquid Clamp-on Ultrasonic Flow Meter

Specs

Process Media
All acoustically conductive liquids with < 10 % gaseous or solid content in volume
Process Temperature Range
-40...200 °C (-40...392 °F)
Ambient Temperature Range
-20...+60 °C (-4...140 °F)
Accuracy
Measurement uncertainty of the measuring system: ±0.3 % MV ±0.005 m/s (±0.02 ft/s)
Repeatability
±0.15% of reading, ±0.005 m/s (±0.02 ft/s)
Flow channels
2
Flow velocity range
0.01...25 m/s (0.03...82 ft/s)
Power Supply
100...240 V/50...60 Hz (power supply unit (IP40, 0...40 °C))
Pipe Size
6mm ... 6.5m (0.24...256 in)
Output
2 switchable current and 2 digital outputs
Communication Protocol
ModBus RTU optional
Certifications/Approvals
Only safe area
Transducers Available
Lamb Wave 4 MHz to 150 Khz; Shear Wave 8 MHz to 200 Khz
System Configuration and Installation
For more detailed Information please download the Technical Specifications

Features

  • 24 h operational time
  • Energy Saver Mode up to 80 days
  • Flow disturbance correction to enable reliable measurements with short hydraulic inlet conditions
  • Advanced diagnostics providing clarity on measurement stability and quality
  • NoiseTrek Mode for fluids with impurities
