Flexim FLUXUS ADM8X27 SIL F Non-Intrusive Ultrasonic Flow Meter

Name: Flexim FLUXUS ADM8X27 SIL F Non-Intrusive Ultrasonic Flow Meter
Brand: Flexim

The FLUXUS SIL F ADM8X27 non-intrusive ultrasonic flow meters are SIL-rated, functional safety approved.

As the wetted parts of inline measuring devices are not subject to the Failure Mode Effects and Diagnostics Analysis (FMEDA), they are not included in the scope of certification - presenting a safety risk. The SIL 2 certification of the FLUXUS non-intrusive flow meter includes the entire measuring system -the measuring transmitters and transducers. It also includes the patented WaveInjector mounting fixture for extreme temperatures, allowing the non-intrusive flow measurement at liquid temperatures from as low as -275 °F up to +1100 °F. Flexim also offers special radiation-resistant transducers for use in the nuclear industry.

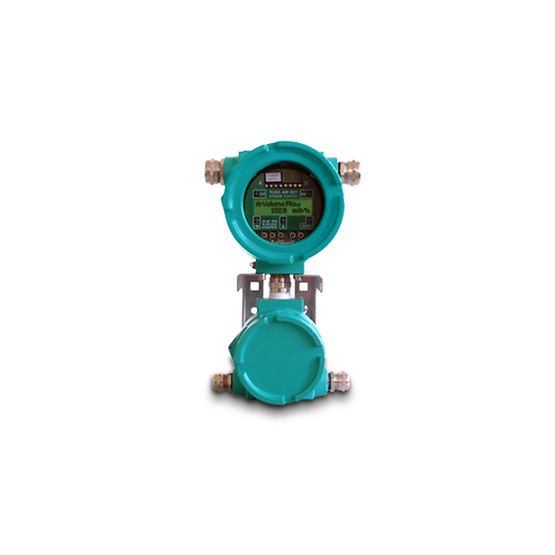

Flexim FLUXUS ADM8X27 SIL F Non-Intrusive Ultrasonic Flow Meter

Specs

Accuracy

Measurement uncertainty at the measuring point (volumetric flow rate): ± 0.5…1.6 % of reading ±0,005 m/s (±0.02 ft/s)

Certifications/Approvals

ATEX/IECEx Zone 1

Communication Protocol

RS232

Flow channels

up to 2

Fluid Type

All liquids

Input

Output

4-20mA active/passive
binary

Pipe size

6 to 6500 mm (0.24 to 255.9 inch)

Power supply

100-230VAC
20-32VDC

Pressure range

Range

Flow Velocity Range: 0,01 to 25 m/s (0.03 to 82 ft/s), depending on pipe diameter

Repeatability

0.15 % of reading ±0,005 m/s (±0.02 ft/s)

System configuration and installation

For more detailed Information please download the Technical Specifications

Temperature range (media)

-40 to +200°C (-40 to +390°F) / WI: -200 to +630°C (-328 to +1166 °F)

Features

Simple retrofitting during ongoing operation
- ideal for maintaining the protective function should an inline measurement fail
- Comprehensive certification
  - Extremely wide range of applications
    - SIL certification also covers WaveInjector technology for the flow measurement of liquids at extreme temperatures of -190 °C to +650 °C
    - Straightforward retesting
      - convincing self-diagnosis functions
      - Transparent evaluations
        publication of FMEDA report
        full information on certification procedures and scope
