The AdEM® -PTZ-r is an electronic counter module with the capability for live compensation for Pressure, Temperature and Supercompressibility (Z).


The AdEM-PTZ-r is a remote mount module for seamless integration with any meter with a standard dry-contact pulse output. Some features of the AdEM-PTZ-r include a full audit trail, four available output pulses, serial communication and a 15 year nominal battery life.

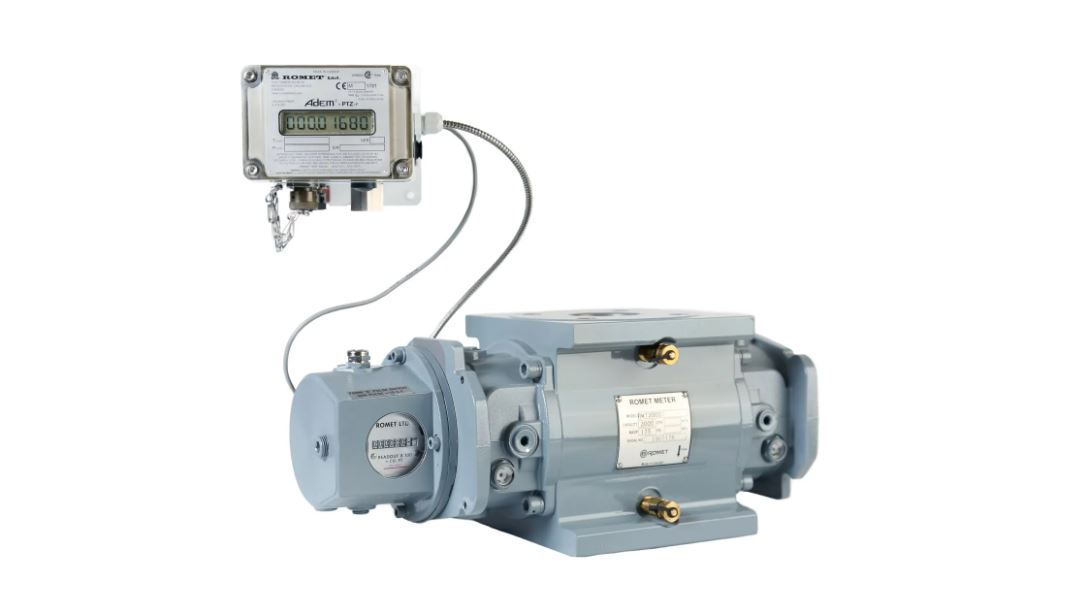

Remote Mount AdEM-PTZ-r

The proven platform of  the AdEM offers an alternative configuration to utilize the advanced measurement capabilities of Romet electronics. As a remote mount model, the AdEM-PTZ-r provides the same ease of use and enhanced user experience as the AdEM-PTZ but also can function as a pressure and temperature recorder to monitor local gas distribution and to electronically monitor pressure and temperature in the gas distribution and transmission grid.

The AdEM-PTZ-r can be easily installed onto any pipe, pole, or wall for seamless integration with existing measurement infrastructure.

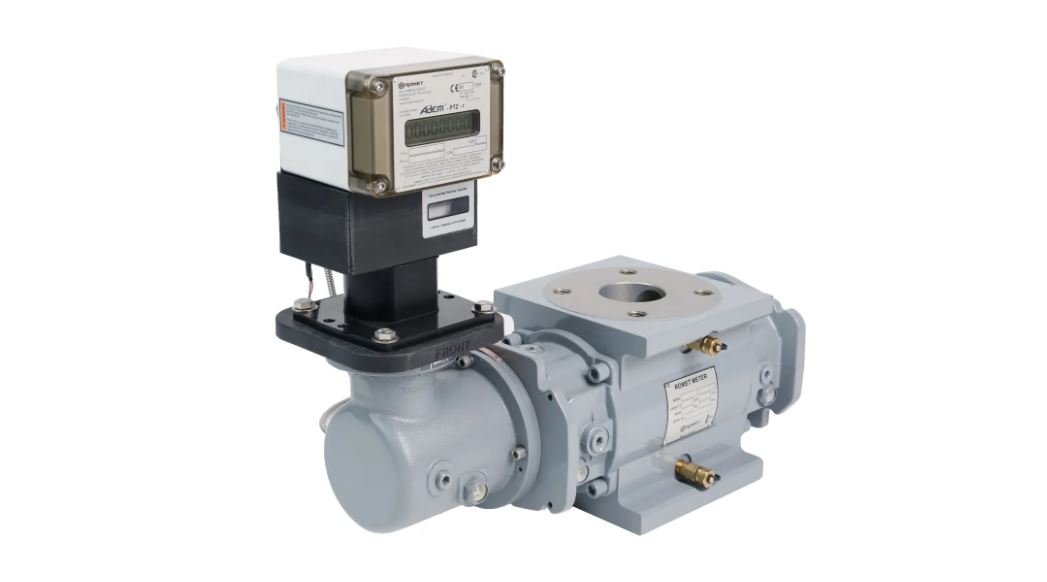

Utilizing AdEM's "mi" (mechnical index) configuration, AdEM-PTZ-r can also be retrofitted on the existing install base of instrument drive (ID) measurement devices (i.e. diaphragm, turbine, or rotary meters)

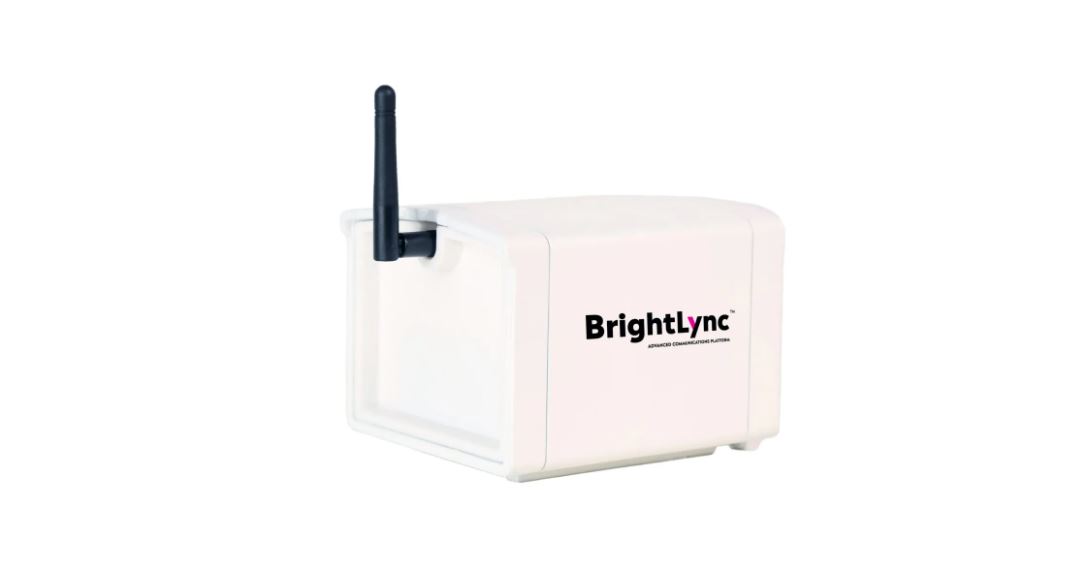

AdEM Advanced Electronics seamlessly integrates with BrightLync® to provide the best-in-class network for near real-time data transmission and data visualization.

Learn more about BrightLync

Technical Specifications
  • 15 year nominal battery life
  • Battery life indicated in month or percentages
  • End of battery life warning
  • Long lasting lithium battery
  • Non-volatile EEPROM memory with full audit trail
  • Up to 256 days of hourly readings
  • 1024 daily logs
  • 102 alarm logs stamped with time and date
  • 166 event logs
  • Live or fixed temperature and pressure compensation
  • Fixed pressure factor (customizable)
  •  Total accuracy (nominal): +/- 0.3% of reading
  • Expands meter rangeability to 200:1
  • Standard ambient temperature: -40F to +158F             (-40C to +70C)
  • Four output pulses available:
    • Two isolated volume pulse output channels (corrected and uncorrected)
    • One isolated pulse output for alarm or volume (corrected or uncorrected)
    • Additional isolated corrected pulse output channel for AMR/AMI devices
    Customizable pulse width and pulse spacing
  • Serial communication port- RS232 or RS485
  • Analog and cellular modem compatible
  • Optional portable keyboard
  • Highly sensitive RTD sensor
  • Standard sensor ranges 0-200 PSIG and 10-190 PSIA. Other pressure ranges available on request.
  • Nominal 12 year calibration
  • 1 point temperature calibration
  •  3 point pressure calibration
  • Fixed/configurable parameters with multiple levels of security
  • Compatible with Itron, Sensus, Aclara, and other AMI/AMR devices
  • Rugged single scroll button with up to 15 display parameters
  • Large, easy to read LCD 8 digits, 14 segment semi alpha-numeric
  • UV resistant engineered polycarbonate enclosure
  • Weather resistant
Data Sheet
Download  the Adem®-PTZr Data Sheet
