The U1000 is a compact, total all-in-one solution for ultra-low harmonics and/or full regeneration, and is the ultimate choice for power quality and energy savings.
Additionally, the U1000 delivers high flexibility and motor control performance to meet a wide variety of application requirements.

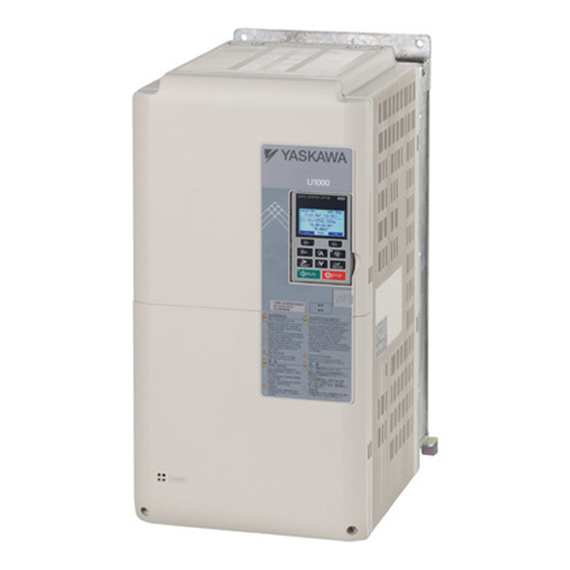

Yaskawa U1000 Industrial MATRIX Drive

Specs

Overload Capacity
150% for 60 sec. (HD), 120% for 60 sec. (ND)
Output Frequency
0~400 Hz
Protective Design
IP00/Open Chassis (IP20/UL Type 1 kit available)
Ambient Operating Temperature
-10 to +50C (IP00/Open Chassis)
Global Certifications
UL, CSA, CE, RoHS

Features

  • Horsepower range: 10-100 HP @ 240v, 7.5-400 HP @ 480v
  • Full Regeneration
  • Low Input Distortion Across a Wide Load and Speed Range
  • Facilitate IEEE 519 Compliance
  • Eco-Mode to Achieve Near Across-the-Line THD
  • High Efficiency Design Provides Extra Energy Savings as Compared to Other Low Harmonic Solutions
  • Near Unity True Power Factor at Full Load
  • Integrated Input Fusing Provides 100kA SCCR
  • Compact Design
  • High Reliability with an MTBF of 28 Years
  • Embedded Modbus RTU Communications
