The GA500 Industrial AC Microdrive is engineered to help you easily handle nearly any application. Sustainability, flexibility, and ease of use are all designed into the drive, helping you make complicated tasks simple. Offering intuitive interaction and world-class quality, the GA500 is the drive you can count on for constant, high quality performance.
The GA500 Industrial AC Microdrive is engineered to help you easily handle nearly any application.
Sustainability, flexibility, and ease of use are all designed into the drive, helping you make complicated tasks simple. Offering intuitive interaction and world-class quality, the GA500 is the drive you can count on for constant, high quality performance.

Features and Benefits of the GA500

Play Video

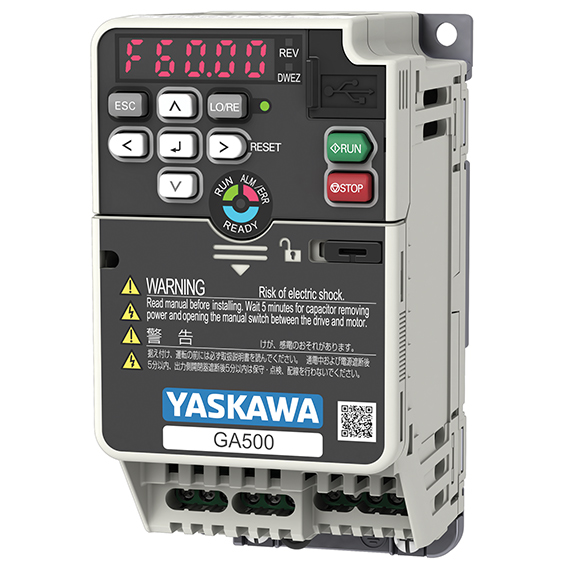

Yaskawa GA500 Drive

Specs

Overload Capacity
110% for 60 sec. (ND), 150% for 60 sec. (HD)
Output Frequency
0~590 Hz
Control Methods
Open Loop Current Vector;
Motor Types
Induction, Surface Permanent Magnet, Interior Permanent Magnet, Synchronous Reluctance
Protective Design
IP20/Protected Chassis
Ambient Operating Temperature
-10 to +50°C (IP20/Protected Chassis)
Global Certification
UL, CE, RCM, RoHS
Functional Safety
Safe Torque Off, SIL3 according to IEC 62061, PLe according to ISO 13849-1
Standard I/O
(7) multi-function digital inputs (24 VDC)

(2) multi-function analog inputs (0 +/- 10 VDC, 4-20 mA)

(1) multi-function pulse inputs

(2) Safe Torque Off inputs

(1) fault relay output (form C)

(2) multi-function outputs (photocoupler)

(1) multi-function analog output (0 to 10 VDC / 4 to 20 mA)

(1) multi-function pulse output

Network Communication
Embedded: Modbus RTU, RS-485, 115 kbps
Speed Control Range
200:1 Open Loop Vector (IM Motors)
Speed Response
≥ 20 Hz: Open Loop Vector (Induction Motors)

Features

  • Horsepower Range: 1/8-30HP @ 230v, 1/8-40HP @ 480v, current vector control, open loop
  • No power programming
  • Intuitive keypad
  • Conformal coated (IEC 60721-3-3: 3C2, 3S2)
  • Up to 30% smaller than the competition
  • Current vector control, open loop
  • Induction motor (IM), permanent magnet motor (PM), or synchronous reluctance motor operation
  • SIL3 (IEC 62061), PLe (ISO 13849-1) safety ratings
  • Embedded Modbus communication
  • Wide variety of communication options
  • Variety of mounting methods (standard, IP20/UL Type 1, side-by-side, external heatsink, DIN rail)
  • Embedded 24 Vdc power supply
  • Maintenance monitors
  • Cooling fan replacement without tools
  • Optional LCD or Bluetooth keypad
  • Global certifications (CE, UL, cUL, TUV, RCM)
  • MTBF: 28 years
  • Short Circuit Current Rating (SCCR): 31 kA rms symmetrical
  • Common programming with all other Yaskawa drives
  • DriveWizard Industrial software for parameter management and start-up
  • DriveWizard Mobile application for smartphones and tablets
  • Function Block Diagram (FBD) programming via DriveWorksEZ™
