Either for compressed air, leak detection, steam traps or electrical applications, the Ultraprobe 3000 is your tool for energy conservation.
Either for compressed air, leak detection, steam traps or electrical applications, the Ultraprobe 3000 is your tool for energy conservation.

The digital energy conservation tool that fits in the palm of your hand


Either for compressed air, leak detection, steam traps or electrical applications, the Ultraprobe 3000 is your tool for energy conservation.
Here is a digital Ultraprobe that’s versatile enough to cut energy waste and improve uptime while saving money, and improving the environment. The Ultraprobe 3000 is a digital ultrasonic inspection, information, storage, and retrieval system that comfortably fits in the palm of your hand.

• Find your leaks & report cost per leak with DMS reporting
• Inspect for faulty steam traps
• Inspect electrical systems for discharge problems
• Troubleshoot bearing & mechanical problems

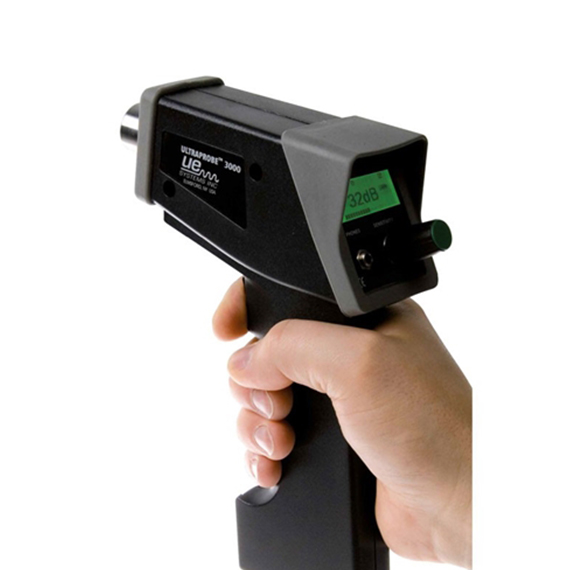

UE Systems Ultraprobe® 3000

Play Video
UE Ultraprobe 3,000 Ultrasound Detector

Specs

Construction
Hand-held pistol type made with ABS plastic
Circuitry
Solid state analog and SMD digital circuitry with temperature compensation
Frequency Response
Frequency response: 35-45 kHz
Display
128×64 Graphic LED with LED backlight
Memory
400 storage locations
Battery
Li Polymer Rechargeable
Operating Temperature
32 °F to 122 °F (0 °C to 50 °C)
Outputs
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Available Probes
Scanning module and stethoscope (contact) module, long range module, RAS MT
Headset
Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards
Indicators
dB, battery status and 16 segment bar graph, sensitivitysetting, record number
Dimensions
Complete kit in Zero Halliburton. aluminum carrying case. 15” x 22” x 5” (38.1 x 55.9 x 11.43 cm)
Weight
Pistol Unit: 1 lbs. (0.45 kg).Carrying Case: 11 lbs. (4.99 kg)
Warranty
1 year standard, 5 years with completed registration form

Features

  • Complete with everything you need for accurate route inspection, the Ultraprobe 3000 includes standard:
  • ULTRAPROBE pistol with decibel readout and 16 Segment bar graph display panel with the “spin & click” controls for sensitivity adjustment, data entry and 400 datapoint storage, the headphone jack, battery, mini USB I/O port, trigger on/off switch and module receptacle.
  • Deluxe industrial noise reducing headset
  • Li Polymer rechargeable battery and charger
  • Zero Halliburton aluminum carrying case
  • Comprehensive instruction manual
  • License & update free included DMS software for yearly cost per leak reports!
