The ultimate digital ultrasonic inspection system for condition monitoring with sound recording for analysis.
The ultimate digital ultrasonic inspection system for condition monitoring with sound recording for analysis.

One of the worlds’ most advanced digital ultrasonic detection systems


The ultimate digital ultrasonic inspection system for condition monitoring with sound recording for analysis.

The Ultraprobe 10,000 brings ultrasound inspection technology to a whole new level. With this one system, inspectors can perform condition analysis, record sounds, store and manage data.

Can be used for ALL ultrasound applications & programs
• Setup bearing data collection routes, analyze & create lubrication routes

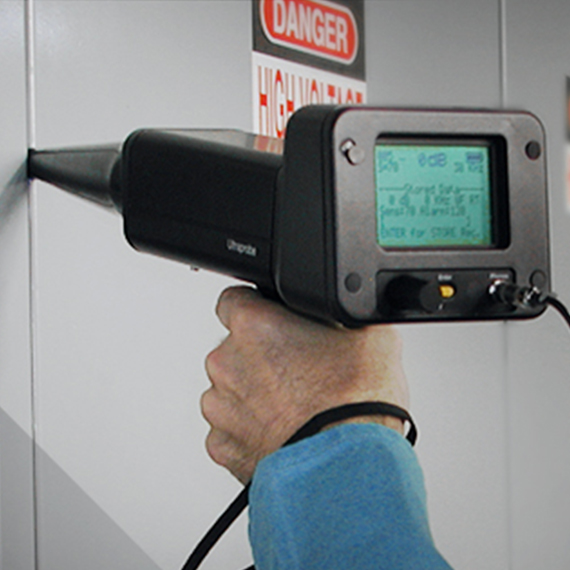

• Inspect electrical systems for faults, analyze on the spot & report
• Inspect for faulty steam traps
• Find your leaks & report cost per leak with DMS reporting

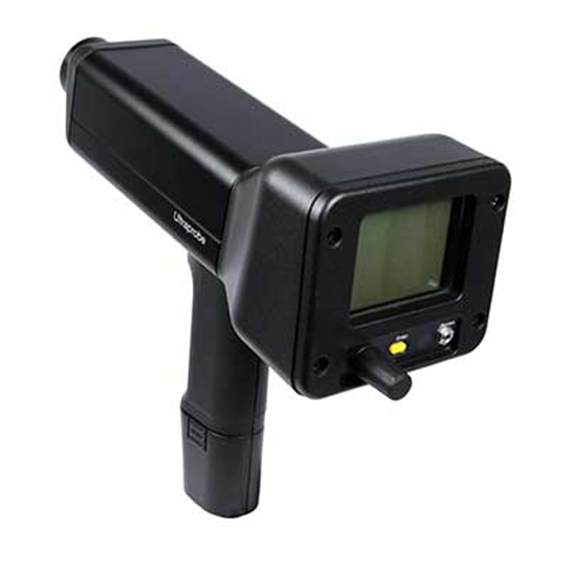

UE Systems Ultraprobe® 10,000

Play Video
UE Ultraprobe 10,000 Ultrasound Detector

Specs

Construction
Hand-held pistol type made with coated aluminum and ABS plastic
Circuitry
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
Frequency Range
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time
< 10 ms
Display
64 x 128 LCD with LED Backlight
Memory
4GB SD card
Battery
Lithium NiMH Rechargeable
Operating Temperature
32 °F to 122 °F (0°C to 50°C)
Outputs
Calibrated heterodyned output, decibel (dB), frequency, SD card output
Modules
Trisonic Scanning Module and Stethoscope Module, Long Range Module and RAS/RAM
Headset
Deluxe noise attentuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Threshold
1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminium carrying case. 21.5″ x 18.5″ x 8″ (55 x 47 x 20 cm)
Weight
Pistol Unit: 2,35 lbs (1.1 kg) Complete carrying case: 19 lbs (8.6 kg)
Warranty
1 year parts/labor standard. 5 years with returned, completed warranty registration
Display Modes
Real Time, Snap Shot, Peak Hold, Storage Display and Application Specific * depends on leak configuration

Features

  • The Ultraprobe 10,000 kit comes loaded with all the accessories you need for effective condition monitoring and includes standard:
  • ULTRAPROBE pistol grip housing. It consists of the display panel, “spin & click” controls, the headphone jack, SD card and module receptacle, on-board data logging & battery.
  • SD card reader
  • Deluxe industrial noise reducing headset
  • Battery recharge kit for main housing and warble tone generator
  • Spare battery
  • Zero Halliburton aluminum carrying case
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Remote access module (RAM) to connect remote sensors
  • Magnetic mount remote sensor (RAS-MT) with cable for consistency in testing bearings & oil cooled transformers
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Long range module with laser pointer (LRML-10) for more accurate & extended range of detection for leak detection or electrical emissions
  • Belt holster for easy carrying
  • Comprehensive instruction manual
  • License & update free included DMS software!
  • License & update free included Spectralyzer software!
