Standard ValvTechnologies’ 4yr zero leakage warranty in steam and water applications

Our trusted V Series valve, now with ease of maintenance.

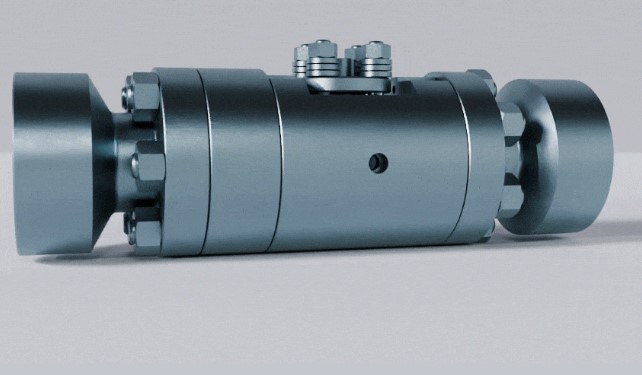

ValvTechnologies V Series valves are engineered to be leak-free and have a position-seated design, ensuring optimal flow while reducing overall cost of ownership. The new V1-R valve has a 4-piece assembly that allows for removal of the valve body and end cap, while the end connections remain in-line. Maintenance can now be made without the need for cutting or welding.

The new V1-R: experience enhanced performance, reduced downtime, and seamless service, all in one innovative solution.

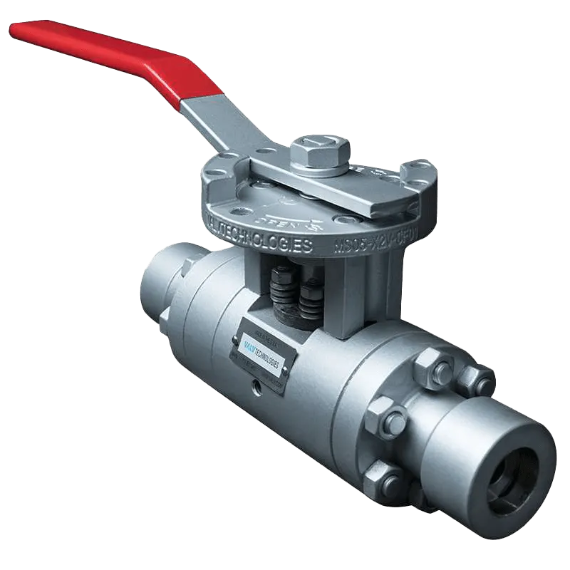

ValvTechnologies V1-R Series, 5/8-4” Sizes, ANSI Class 3100 In-Line Repairable Ball Valve

Specs

Sizes
5/8” – 4”
Pressure Classes
ASME / ANSI Class 3100
Materials of Construction
Carbon steel (A105) – Standard
Alloy steel (F22, F91) – Standard
In Compliance
ASME B16.34
PED
Nuclear ASME III Class 1, 2 and 3
Nuclear Safety Related – 10CFR50 Appendix B
SIL
End Connections
Socketweld, Buttweld – Standard
Shutoff
Absolute Zero-Leakage Shutoff

Features

  • Simplicity of design: 4-piece valve assembly designed for ease of removal while connections remain inline. Field testable after repair, prior to insertion
  • Through conduit design: No tortuous flow path. When open it has the highest possible Cv’s
  • Fixed position: Quarter turn: no seating torques required.
  • Hardened blowout proof stem: One piece, inserted through the body & shouldered
  • Metallic body seal ring: Increases body integrity by eliminating external leakage.
  • Live load packing gland: Minimum four bolt configuration with shallow stuffing box. Ensures consistent torque at variable pressures & temperatures
  • Hard coated & mate lapped ball and seat: High Velocity Oxygen Fuel (HVOF) chromium carbide hard coating with a minimum hardness of 850 HV (65 HRC). Mate-lapped seats
  • Seat designs: Hard coated, both ball and integral downstream seat to the end-cap to eliminate a potential leak path
  • Stringent testing: Every valve is tested, documented, and serialized
  • Four-year warranty: The very best in the industry. Covers internal seat leakage as well as external through the packing and/or body seal.
