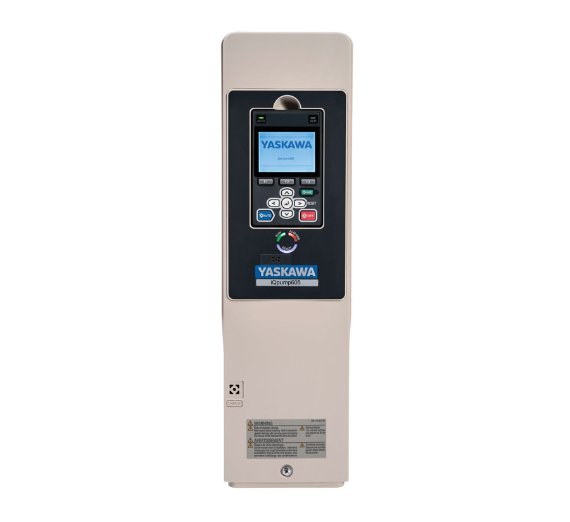

The iQpump605 is Yaskawa’s next-generation intelligent pump VFD, designed to simplify commissioning, improve energy efficiency, and provide comprehensive pump/motor protection across irrigation, booster, lift-station, and municipal water applications.


It builds on the proven iQpump1000 platform with guided setup, mobile connectivity, and robust enclosure options for indoor/outdoor use.

Key Features

  • Pump-Centric Commissioning: Step-by-step setup wizard with plain pump terminology (PSI, GPM, feet) and presets for submersible/above-ground systems to minimize startup time.
  • HOA Keypad & Display: Hand-Off-Auto keypad with bright, sunlight-resistant screen and dedicated function keys for quick navigation; onboard data logging with timestamps.
  • Protection & Reliability: Loss-of-prime/dry-run protection, programmable low-flow cutout, and soft-fill to reduce water hammer; conformal-coated boards and built-in line impedance for long service life and reduced harmonics.
  • Efficiency & Control: PID maintains setpoint while automatically adjusting speed to match demand, keeping the pump near its best efficiency point and reducing wear/energy use.
  • Connectivity & Tools: Optional Bluetooth keypad for DriveWizard Mobile + Drive Cloud; PC DriveWizard iQpump SCADA for programming, trending, and performance; Application Simulator, Energy Savings Predictor, and Harmonics Estimator.

Specifications

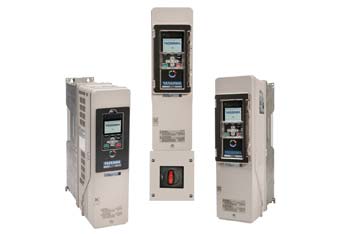

Ratings & Models

Ratings & Models

Voltage/HP Ranges


IP20 / UL Type 1|3–60 HP @ 240 V; 3–125 HP @ 480 V
IP20 / Protected Chassis|75–150 HP @ 240 V; 150–600 HP @ 480 V
IP55 / UL Type 12 (with or without disconnect switch)|3–60 HP @ 240 V; 3–125 HP @ 480 V.

Enclosures & Packages

  • Enclosure Options: IP20/UL Type 1; Protected Chassis; IP55/UL Type 12; UL Type 3R outdoor packages.
  • Configured Packages: UL Type 1, 12, or 3R cabinets with selectable options (up to 600 HP @ 480 V; 208/240 V up to 150 HP).
  • Bypass Packages: UL Type 1, 12, or 3R with across-the-line motor bypass (e.g., 480 V up to 250 HP; 208/240 V up to 100 HP).
  • Optional Disconnect Switch: Available on select IP55 models for maintenance and safety compliance.

Applications

  • Municipal Water & Wastewater: Booster systems, wet-well lift stations, constant pressure/flow control.
  • Agriculture & Irrigation: Precise flow and pressure control with reduced energy use and minimized water hammer.
  • Industrial Process Water & Cooling: Reliable PID regulation, event logging, and protection features.
  • Geothermal / Storage Tanks / Desalination: Accurate level/pressure control improving system stability and efficiency.

Notable Functions

  • Soft-Fill / Pipe Fill: Gradually pressurizes lines to extend system life.
  • Anti-Jam / Low-Flow Shutdown: Protects pump from debris/silt and off-design operation.
  • Event & Trend Logging: High-resolution multi-language display with data logging, time/date stamps, and timer controls.

Documentation & Downloads

iQpump605 overview, features, specifications, drawings.
Product Page (Yaskawa)
iQpump605 overview, features, specifications, drawings.
iQpump 605 – specs, packages, accessories

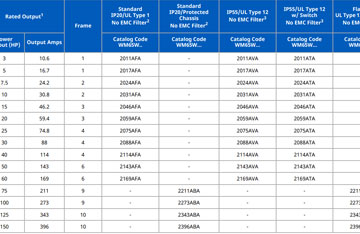

Selection Guide
iQpump 605 – specs, packages, accessories
