The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage and retrieval system that’s versatile and easy to use.
Either for compressed air, leak detection, steam traps or electrical applications, the Ultraprobe 3000 is your tool for energy conservation.

Expand your inspection capabilities with digital ultrasound technology


Inspect, store & manage data accurately!

The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage and retrieval system that’s versatile and easy to use.
This Ultraprobe will help move you through inspections quickly and easily -most operators learn within 15 minutes.

Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.

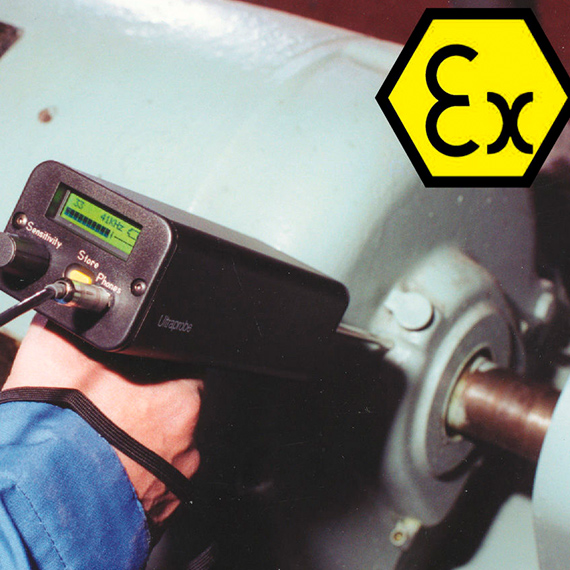

Ultraprobe 9000 - Testing Bearings

Play Video

Ultraprobe 9000 - Testing Steam Traps

Play Video

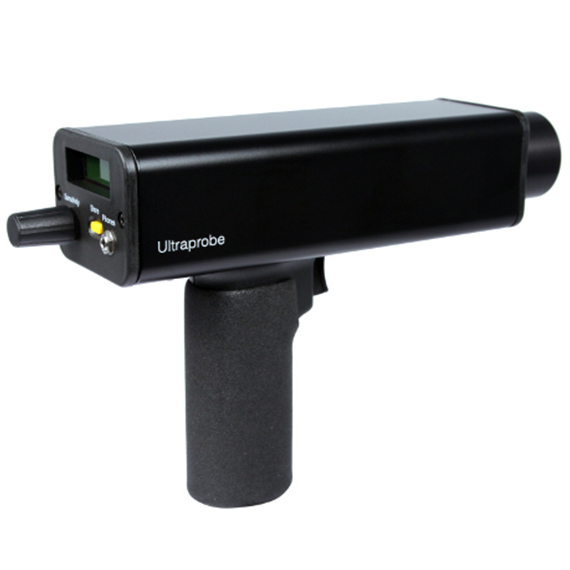

UE Ultraprobe 9,000 Ultrasound Detector

Specs

Construction
Hand-held pistol type made with coated aluminium and ABS plastic
Circuitry
Solid State SMD Digital Circuitry with temperature compensation
Frequency
20 kHz to 100 kHz (tunable in 1 kHz increments)
Display
16 x 2 LCD with LED Backlight
Memory
400 storage locations
Battery
NiMH Rechargable
Operating Temperature
32 °F to 122 °F (0 °C to 50 °C)
Outputs
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Probes
Trisonic Scanning Module and Stethoscope Module
Headset
Deluxe noise attenuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity
Detects 0.005” (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50 ft. (15.24 m.)
Threshold
1 x 10–2 std. cc/sec to 1 x 10–3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminum carrying case: 18.5” x 14.5” x 6.5” (47 x 37 x 17 cm) Pistol Unit: 2 lbs. (0.9 kg) Complete carrying case: 14 lbs. (6.4 kg)
Weight
2 lbs. (1 kg)
Warranty
1-year parts/labor standard, 5 years with completed warranty registration card
Display Modes
Real Time, Snap Shot, Peak Hold and Storage Display

Features

  • Complete with everything you need for accurate route inspection, the Ultraprobe 9000 includes standard:
  • ULTRAPROBE pistol grip housing is the main control unit. It consists of the display panel, the “spin & click” controls for volume/frequency adjustment, data entry and data storage, the headphone jack, battery, I/O port, trigger on/off switch and module receptacle.
  • Deluxe industrial noise reducing headset
  • Data cable I/O to USB
  • Battery recharge kit for main housing and warble tone generator
  • Zero Halliburton aluminum carrying case
  • Comprehensive instruction manual
  • License & update free included DMS software
