Control Panel Design & Fabrication Control Panel Design & Fabrication
Lakeside has the capabilities to design and supply standard and custom electrical, pneumatic, analytical systems and drive (VFD) panels. Backed by our highly skilled team, we are poised to fulfill any requirement, ensuring your panel is designed, constructed, tested, and delivered on budget and on-time.
Our main panel shop is located in our Mississauga facility (80,000 SQ FT facility) with overflow capability in our Innovation centre located in Hamilton (44,000 SQ FT facility).

We have over 20,000 hours/year of dedicated design engineering capability and over 12,000 hours/year of dedicated panel shop fabrication resources.
Our Mississauga facility includes a large, well lit, air-conditioned staging area for hardware factory acceptance testing and integrated (HW/SW) factory acceptance testing. We have a large inventory of Emerson hardware components and strong third-party supplier relationships which reduce schedule risk and allows us to accommodate last minute changes. We have a proven track record of expediting or eliminating schedule slippage by leveraging our teams and facilities in Mississauga, Hamilton, Winnipeg, Sarnia, Sudbury and Thunder Bay offices.

Panel Types

We have built countless:

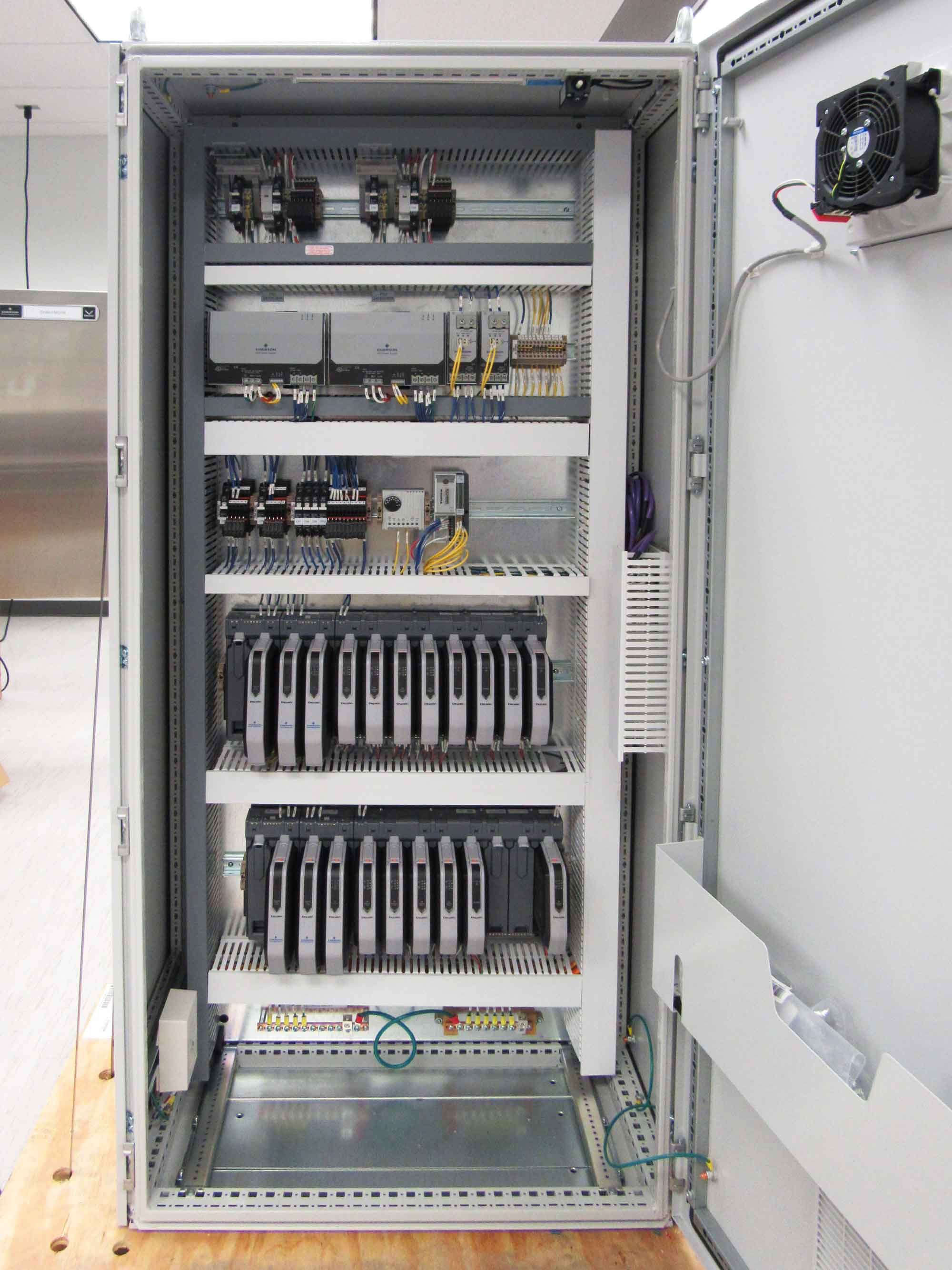

  • DCS/PLC/RTU panels
  • HMI panels
  • Complex networking/communication infrastructure panels.


Our specialization in Emerson technology provides comprehensive product knowledge of:

  • DeltaV
  • DeltaV Safety Instrumented Systems (SIS)
  • Emerson Machine Automation Solutions PLC’s
  • Emerson RTU’s which includes:
    • FB1100 & FB2100 Flow computers
    • B3000 Remote Terminal Units
    • Fisher ROC (Remote Operations Controller)
    • FloBoss, ControlWave, Daniel DL8000)

Technology

Electronic Marshalling

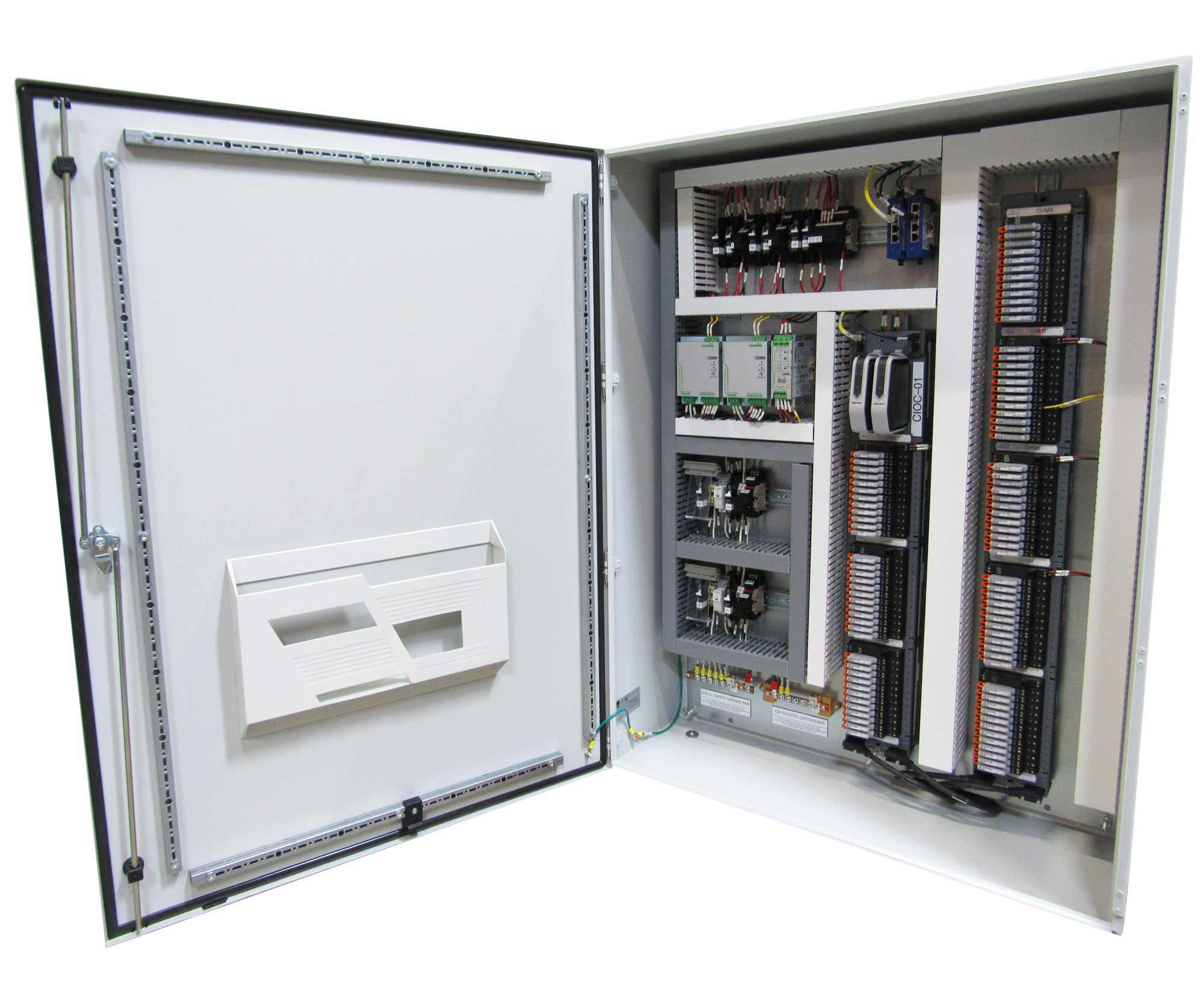

Electronic Marshalling

Lakeside has supplied hundreds of panels utilizing Emerson’s unique Electronic Marshaling I/O system. These standard 48,60 & 96 I/O panels can be supplied/shipped before your I/O and control logic design is finalized. This can significantly accelerate your construction schedules in both Brownfield and Greenfield projects.

In addition to schedule improvements, the flexibility of the DeltaV Charms (Electronic Marshaling) I/O can significantly reduce overall project risk and shrink your project commissioning time.
LEARN MORE
Analytical Process Systems

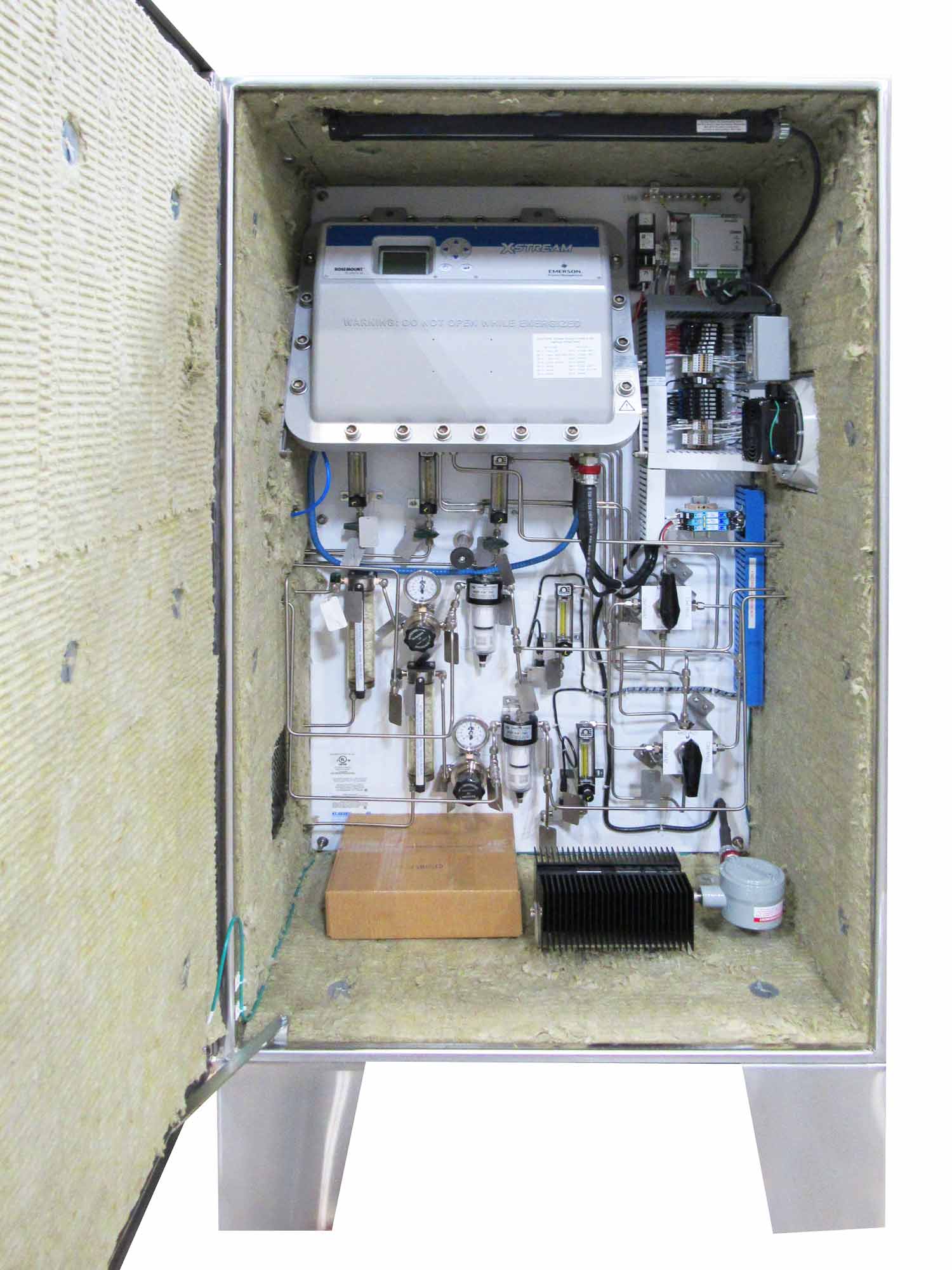

Analytical Process Systems

Our designs also include analytical process systems such as:

  • Gas Chromatograph [GC]
  • Continuous Emission Monitoring [CEMS]
  • Fire & Gas detection panels

We also supply:
  • Burner Management System (BMS) panels
  • Reliability system panels
  • Field junction boxes
Third-Party Products

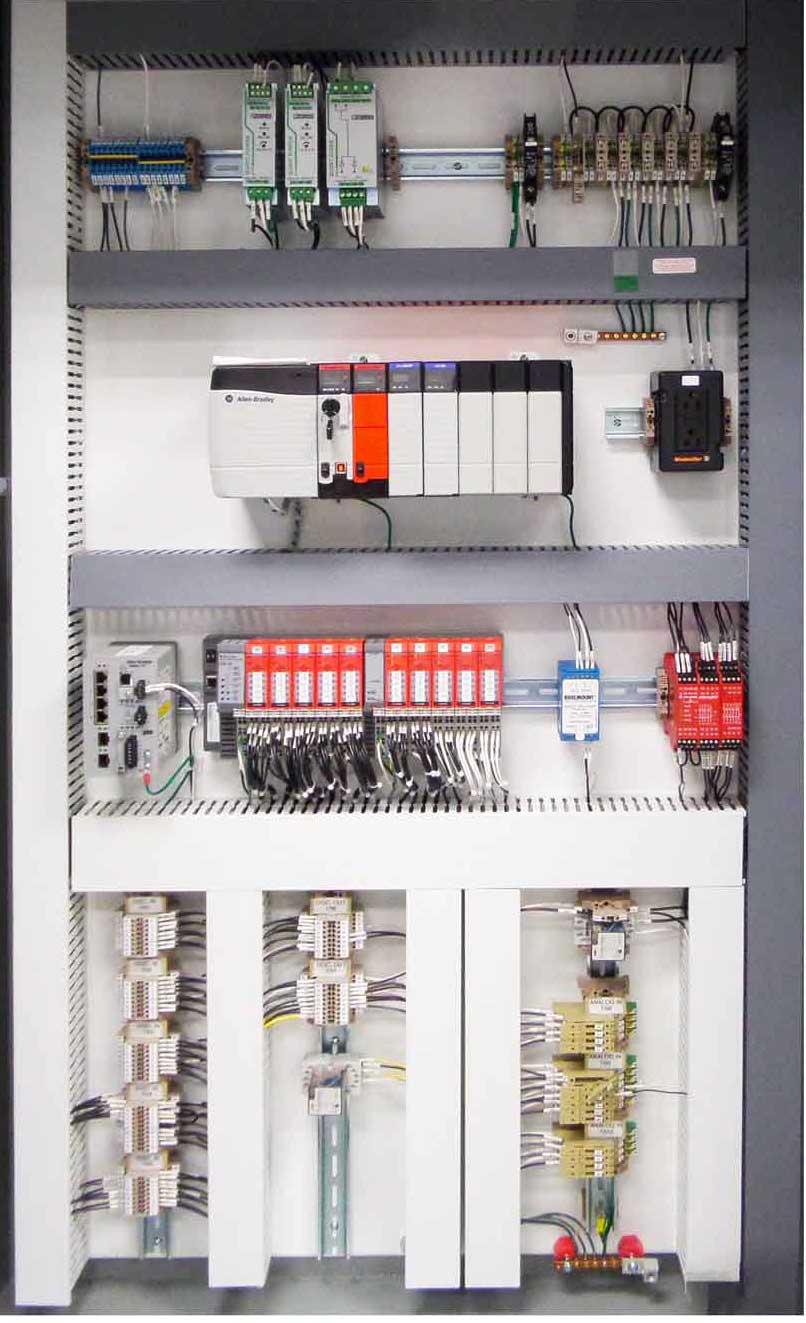

Third-Party Products

We have extensive experience in many third-party products including various PLC’s and telecom equipment:

  • PLC’s
  • Ethernet networks
  • Level 1 and 2 networks
  • Field device networks (Ethernet/IP, Modbus TCP, ProfiNet)
  • OPC UA and legacy OPC (DA, HDA, AE).

Legacy networks including:

  • Serial communication networks (RS-232, RS-485)
  • Modbus RTU, DH+
  • Bus communication networks (Foundation Fieldbus, AS-Interface, DeviceNet and Profibus DP segment design).

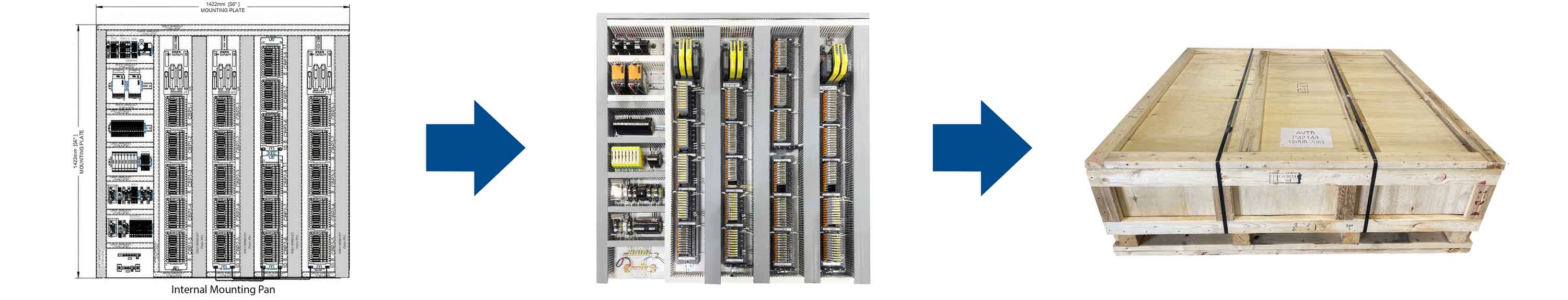

From panel design to fabrication, testing, and shipment, you can trust us with your most critical project!

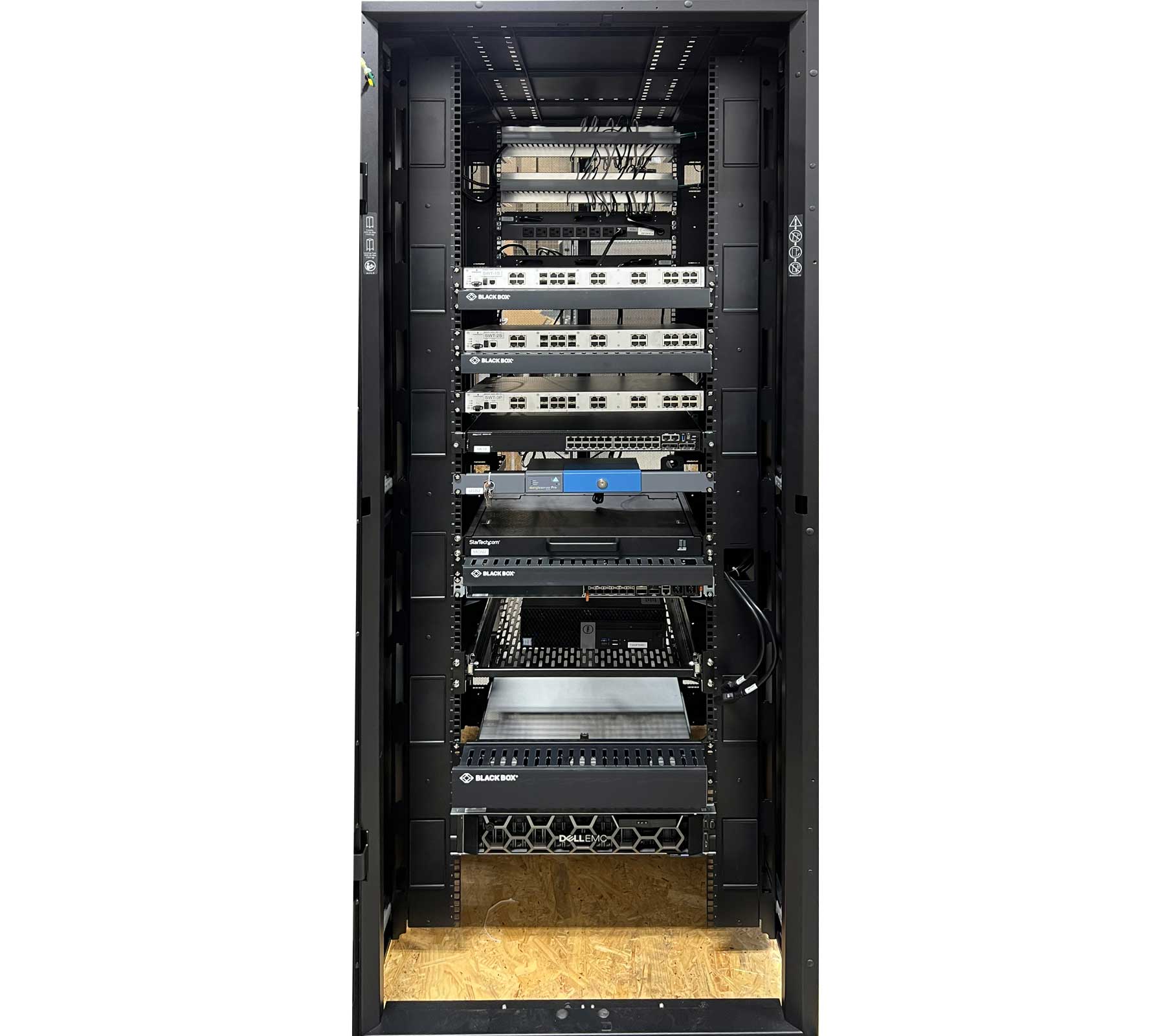

Network & Communication

We have extensive design capabilities for:


  • Ethernet networks
  • Field device networks (Ethernet/IP, Modbus TCP, ProfiNet)
  • OPC UA and legacy OPC (DA, HDA, AE)
  • Legacy networks including:
    • Serial communication networks (RS-232, RS-485)
    • Modbus RTU, DH+
    • Bus communication networks (Foundation Fieldbus, AS-Interface, DeviceNet and Profibus DP segment design)

Proven Results

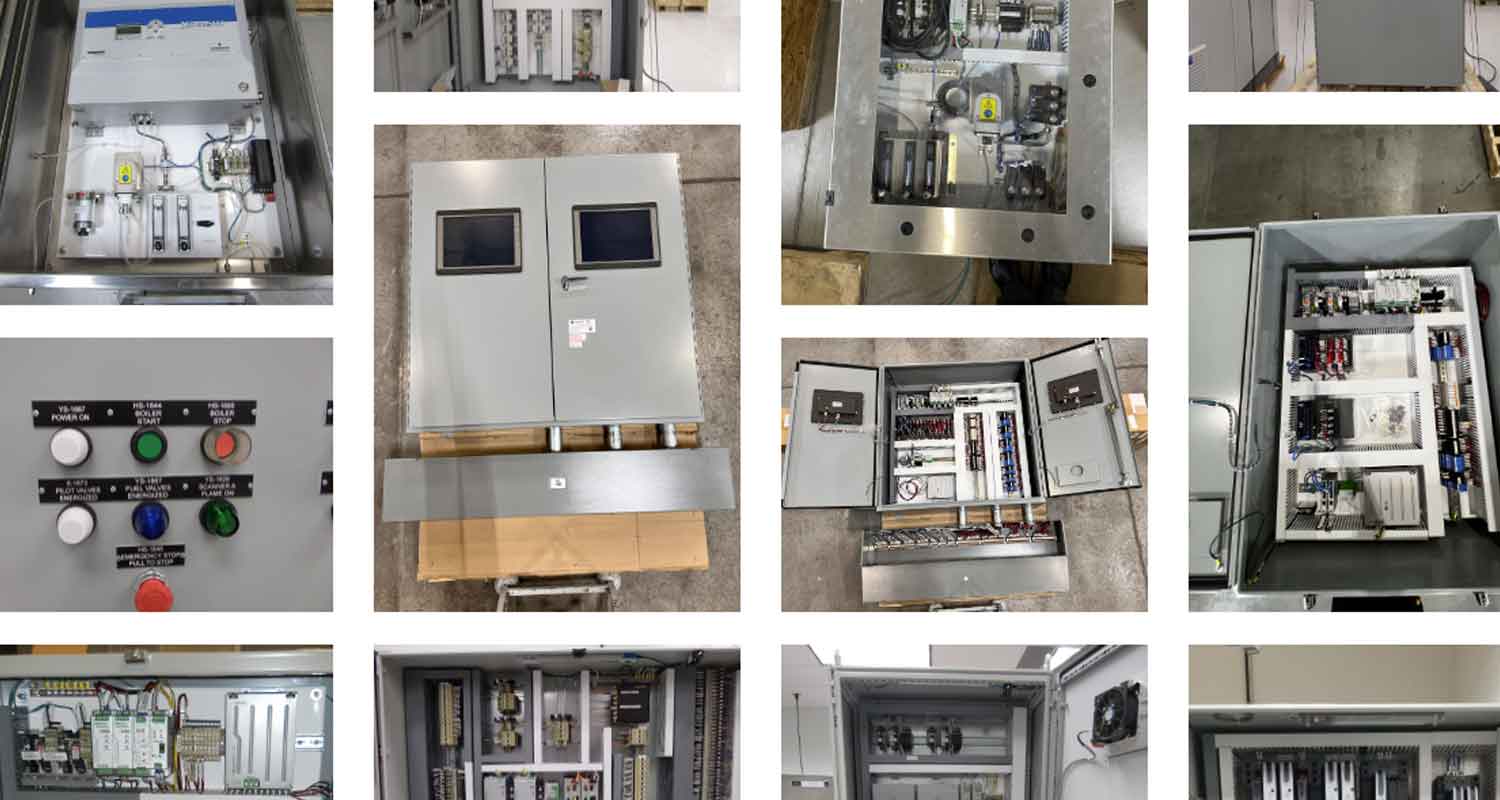

Explore a curated collection of our past projects, showcasing our commitment to precision engineering, innovative design, and unparalleled quality. Our gallery is a testament to our technical craftsmanship and dedication to exceeding expectations in every way.
VIEW GALLERY

Certifications

ISO9001:2015
Organizations need to demonstrate the ability to consistently provide products and services that meet customer and applicable statutory and regulatory requirements with the aim to enhance customer satisfaction through the effective application of the system.

cCSAus

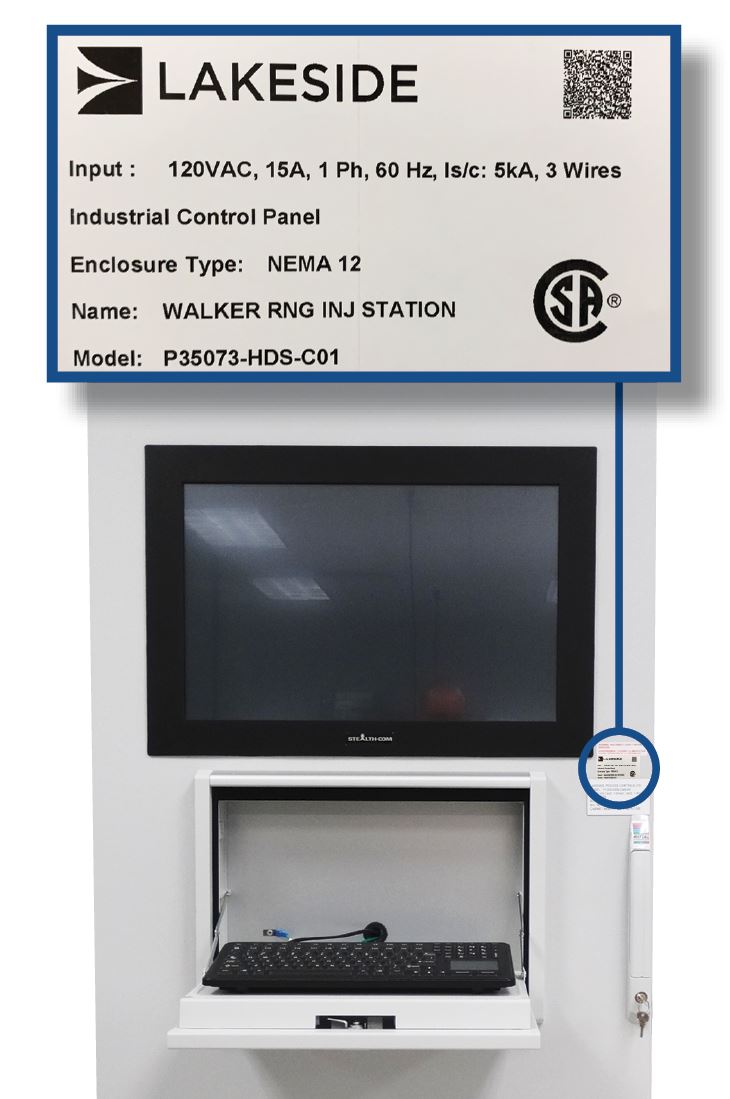

Control panels are a crucial component in various industries and facilities. They serve as the central command center for electrical systems, and it is important that they meet strict standards for safety and reliability. The CSA certification is a widely recognized mark of safety and quality, indicating that a product has been tested to meet specific safety and performance standards. We are cCSAus certified. We can provide panels approved for general purpose areas as well as Class 1 Division 2 and Class 1 Division 1 hazardous area installation.
